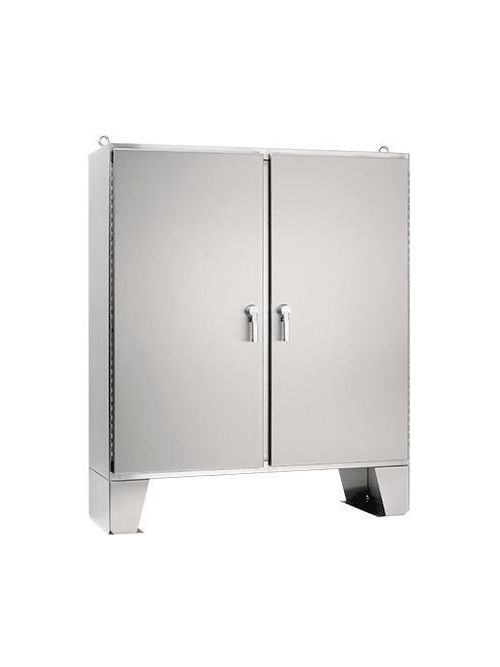

Hoffman A74H7212SS6LP3PT 74.06 x 72.06 x 12.06 Inch 12 Gauge 316L Stainless Steel NEMA 4X 2-Door Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$20,157.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A74H7212SS6LP3PT
North Coast Part # 1340104

Features

  • Backs are 10 or 12 gauge stainless steel with x-form stiffeners
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Removable centerpost for easy panel installation
  • Collar studs provided for mounting optional panels
  • Panel supports included
  • Heavy-duty lifting eyes are Type 316L stainless steel
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handles
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-duty stainless steel continuous hinges support each door
  • Bonding provision on doors; grounding studs on body

Specifications

  • Height (H) (inch): 74.06
  • Height (H) (millimetre): 1,881
  • Width (W) (inch): 72.06
  • Width (W) (millimetre): 1,830
  • Depth (D) (inch): 12.06
  • Depth (D) (millimetre): 306
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 316L
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 68.00 x 68.00
  • Panel Size (D x E) (millimetre): 1727 x 1727
  • Conductive Panel: A72P72G
  • Panel: A72P72
  • Stainless Steel Type: 316L
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.78
  • Size: 74.06x72.06x12.06 in

Related Products

Accessory

  • A74BP12G
  • A74BP12
  • AS050SS
  • N280416G051
  • LED24V15
  • A72P72
  • A72P72G
  • APWK729NFSS
  • APWK138NFNM
  • APWK2919NFSS
  • APWK53NFNM
  • APWK715NFSS
  • APWK116NFNM
  • APWK138NFSS
  • AWDH2016N4SS
  • AWDH2430N4SS
  • AWDH1612N4SS
  • APWK711NFSS
  • AWDH2420N4SS
  • APWK2315NFSS
  • AWDH1418N4SS
  • AWDH2416N4SS
  • APWK95NFSS
  • APWK1711NFSS
  • APWK720NFSS
  • AWDH3624N4SS
  • AWDH3024N4SS
  • APWK53NFSS
  • APWK95NFNM
  • ALFSWD
  • ADPX4ASS
  • GSKTKITS375
  • ADSTOPKSS6
  • ADPX4CSS
  • ADPX4BSS
  • ACSHELF1212SS
  • ACSHELF1818SS
  • ACSHELF2424SS
  • AHCI5E
  • AHCI60R
  • AHCI240R
  • AHCI1DV
  • AHCI10E
  • AHCI238S
  • LEDA1S35
  • LEDA2S35
  • AS050
  • APE100
  • APE050
  • APS3

Overview

UPC 78351014293
Item Long Description These two-door enclosures provide industry-leading protection for large components or complex mounting configurations in highly corrosive environments. Three-point latching with the HOFFMAN PowerGlide padlocking handles and a foam-in-place gasket combine convenience with security. They are well-suited for use in petrochemical plants; pulp and paper processing; water treatment facilities; and food, pharmaceutical and packaging applications.
GTiN 00783510142933
Width 72.06 in
Size 74.06x72.06x12.06 in
Type Free-Stand, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 306 mm
Height 74.06 in
Standard 12,13,3R,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA Type 3,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 2.78 mm
