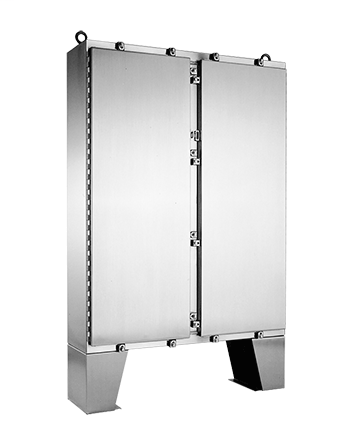

Hoffman A74H7224SSLP 74.06 x 72.06 x 24.06 Inch Stainless Steel Enclosure
$20,747.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A74H7224SSLP
North Coast Part # 67394

Features

  • 12 gauge Type 304 or 316L stainless steel
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Backs are 10 or 12 gauge stainless steel with x-form stiffeners
  • Removable centerpost for easy panel installation
  • Panel supports
  • Stainless steel screws and clamps on three sides of each door assure water-tight seal
  • Rolled lip around entire door opening excludes liquids and contaminants
  • Heavy-gauge stainless steel continuous hinge
  • Data pocket is high-impact thermoplastic
  • 12-in. (305-mm) floor stands are bolted onto enclosure
  • Hasp and staple for padlocking
  • Seamless foam-in-place gasket provides oil-tight and dust-tight seal against contaminants
  • Collar studs provided for mounting optional panels
  • External hardware manufactured of Type 316 stainless steel
  • Bonding provision on doors; gounding studs on body
  • Accessory mounting channel provided in enclosure top
  • Type 316L stainless steel lifting eyes

Accessories

  • Electric Heater
  • Panelite Enclosure Lights Overview
  • Panel Support Kit
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A4SL
  • Model Code: 84300
  • Ship Wt. Std. Pkg. (lbs): 706.0
  • Interchangeable: False
  • Catalog Number: A74H7224SSLP
  • A in.: 74.06
  • B in.: 72.06
  • C in.: 24.06
  • Panel Size D x E in.: 68.00 x 68.00
  • Conductive Panel: A72P72G
  • Number of Clamps: 18
  • Panel: A72P72
  • Stainless Steel Type: 304
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351084300
GTiN 00783510843007
Width 72.06 in
Size 74.06x72.06x24.06 in
Type Double Door
Material 304 Stainless Steel
Applications Used in Food Processing Plants, Pharmaceutical Manufacturing Facilities, Petrochemical Plants, Pulp and Paper Processing and Water Treatment Facilities
Depth 24.09 in
Height 74.06 in
Standard 4,NEMA Type 3,4X,Type 3R,File No. E61997,13,UL 508A Listed,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,12,3R,IP66,IEC 60529,Meets NEMA Type 3RX Requirements
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Mounting Type Floor
Gauge 12
Cover Type Continuous Hinge
