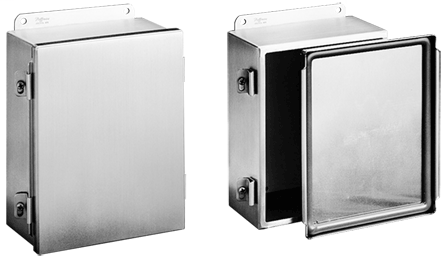

Hoffman A8064NFSS 8 x 6 x 4 Inch 14 Gauge 304/316L Stainless Steel NEMA 4X Clamp Cover Junction Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$441.70/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A8064NFSS
North Coast Part # 213138

Features

  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Stainless steel screws and clamps
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
  • Bonding provision on door and body

Specifications

  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 6
  • Width (W) (millimetre): 152
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 6.75 x 4.88
  • Panel Size (D x E) (millimetre): 171 x 124
  • Overall Dimensions (L x W) (inch): 9.50 x 7.38
  • Overall Dimensions (L x W) (millimetre): 241 x 187
  • Steel Panel: A8P6
  • Mounting (G x H) (inch): 8.75 x 4.00
  • Mounting (G x H) (millimetre): 222 x 102
  • Conductive Steel Panel: A8P6G
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.98
  • Color: Unpainted
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.59
  • Finish: Brushed #4
  • Size: 8.00x6.00x4.00 in

Related Products

Accessory

  • A8P6
  • A8P6G
  • AL23SS
  • A8P6AL
  • APLKJIC6SS
  • A8P6SS
  • AL18
  • AJCDFK
  • A8JTMA
  • A6JTMA
  • A8JS
  • A8JBNS
  • A8P6C

Overview

GTiN 00783510569303
Finish Brushed/Grinded
Width 152 mm
Size 8.00x6.00x4.00 in
Color Stainless Steel
Type Two Lock, Single Door
Material Stainless Steel
Applications Used in Either Corrosive or Outdoor Applications
Mounting Type Wall
Depth 102 mm
Height 203 mm
Standard 12,4,4X,508 Listed,CUL Listed Per CSA C22.2 No 94,File No. E27525,File No. E61997,NEMA/EEM,Type 3R,UL 50 Listed,UL 508A
Family Brand Name Hoffman
Gauge 14 and 16
Cover Gauge 16
Body Gauge 14
Cover Type Clamp
Sub Brand Hoffman
Product UPC 78351056930
Body Thickness 1.98 mm
