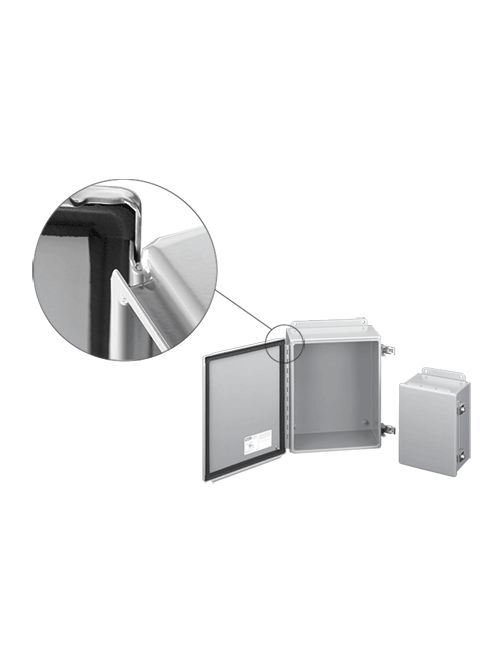

Hoffman A806CHFTC 8 x 6 x 4.54 Inch 16 Gauge Steel NEMA 12 Hinge Cover Junction Box
Product image thumbnail 0
Product image thumbnail 1
$133.51/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A806CHFTC
North Coast Part # 602624

Features

  • External formed body flange channels away liquids
  • Continuous hinge
  • Bonding provision on door
  • Heavy-duty, tool-to-open, plated latches
  • Oil-resistant gasket
  • External wall-mounting brackets
  • Weldnuts provided for mounting optional panels and terminal block kits
  • Seams continuously welded and ground smooth

Specifications

  • Height (H): 203 millimetre
  • Width (W): 152 millimetre
  • Depth (D): 121 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel Size (D x E): 171 x 124 millimetre
  • Conductive Panel: A8P6G
  • Overall Dimensions (L x W): 242 x 175 millimetre
  • Mounting (G x H): 222 x 102 millimetre
  • Panel: A8P6
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Body Thickness: 1.52 millimetre
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness: 1.9 millimetre
  • Finish: Powder Coated

Related Products

Accessory

  • A8P6
  • A8P6G
  • APLKJIC
  • A8P6AL
  • APLKJIC6SS
  • A8P6SS
  • AJCDFK
  • A8JTMA
  • A6JTMA
  • A8JS
  • A8JBNS
  • A8P6C
  • AS050

Overview

UPC 78351074340
GTiN 00783510743406
Finish Powder Coated
Width 152 mm
Size 8.00x6.00x4.54 in
Color Gray
Type Two Lock, Single Door
Material Steel
Applications Used in Automotive and other Applications that Require an Outward Formed External Flange Through Collar to Keep Out Liquids and Contaminants
Mounting Type Wall
Depth 115 mm
Height 203 mm
Standard 13,50E Listed,CSA,CUL Listed Per CSA C22.2 No. 94,File,File No. E27567,File No. E61997,NEMA/EEMAC Type 12,Type 12,UL 50,UL 508A Listed
Family Brand Name Hoffman
Gauge 16
Cover Type Continuous Hinged with Flange Trough Collar
Sub Brand Hoffman
