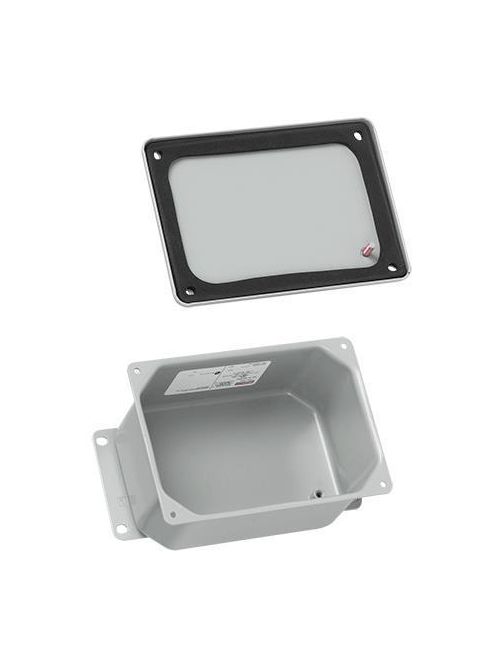

Hoffman A845DSC 8 x 4 x 4.75 Inch Dome Screw Cover Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$133.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A845DSC
North Coast Part # 673008

Features

  • Drawn enclosure
  • No welded seams or sharp corners
  • Cover screws
  • Formed flanged cover
  • Oil-resistant gasket
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover
  • Grounding stud on body

Specifications

  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 4.75
  • Depth (D) (millimetre): 121
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Cover Style: Dome
  • Interior Volume (cubic inch): 109.1
  • Mounting (G) (inch): 8.5
  • Mounting (G) (millimetre): 216
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP67
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 8.00x4.00x3.75 in
  • Cubic Capacity: 109.1 cubic in

Related Products

Accessory

  • AS050

Overview

UPC 78351057380
Item Long Description An economical solution for a broad range of electrical and terminal wiring applications that don't require a back panel, this enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility.
GTiN 00783510573805
Finish Powder Coated
Width 4 in
Size 8.00x4.00x3.75 in
Color Gray
Type Contoured,Flat And Dome Cover,Type 4
Material Steel
Applications Controls and Drives
Depth 121 mm
Height 8 in
Standard CSA, File No. 42186: Type 4, 12, And 13,CUL Listed Per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997,IEC 60529, IP67,NEMA Type 4, 6, 12, And 13,UL 508A Listed; Type 4, 6, 12, 13; File No. E61997
Capacity 109.1 cu in
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.52 mm
