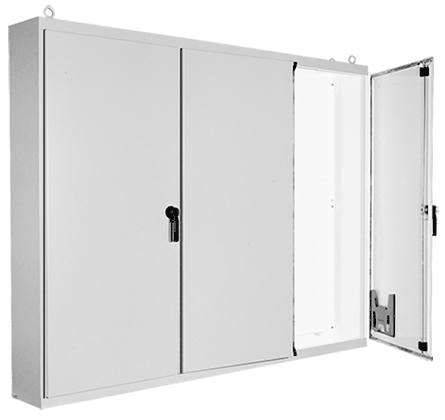

Hoffman A86M3E20 86.12 x 112 x 20.12 Inch White Steel NEMA 12 Free Stand Enclosure
$11,293.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A86M3E20
North Coast Part # 219682

Features

  • 12-gauge steel (.121-in.)
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy-duty lifting eyes anchored into reinforced top
  • Overlapping, gasketed openings on two-door centerposts
  • At two-door openings, gasketed overlapping doors eliminate need for centerposts
  • Three-point latches operated by padlocking handle
  • Concealed, easy-to-remove hinges
  • Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
  • Panel supports
  • Large data pocket is high-impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Available with panels included or panels purchased separately
  • Bonding provision on doors
  • Provisions for mounting fluorescent lights

Notes

  • Panels are furnished with enclosure. Removable panel not included with models ending in LP.

Accessories

  • Blower Fan Package
  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Electrical Interlocks
  • InterSafe Data Interface Ports, Type 4/4X/12
  • Panelite Enclosure Lights Overview

Specifications

  • Bulletin Number: A27
  • Material: Steel
  • Model Code: 91350
  • Ship Wt. Std. Pkg. (lbs): 1780.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A86M3E20
  • A in.: 86.12
  • B in.: 112
  • C in.: 20.12
  • Interior Finish: White
  • Number of Large Panels: 1
  • Size of Large Panels in.: 78.00 x 70.00
  • Number of Small Panels: 1
  • Size of Small Panels in.: 78.00 x 34.00
  • Number of Doors: 3
  • Number of Lifting Eyes: 4
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55

Categories

Overview

UPC 78351091350
GTiN 7.83511E+11
Finish Painted Steel,White
Width 112 in
Size 86.12x112.00x20.12 in
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 20.12 in
Height 86.12 in
Standard CSA, File No. 42186, Type 12,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Number of Doors 3
Sub Brand Hoffman
