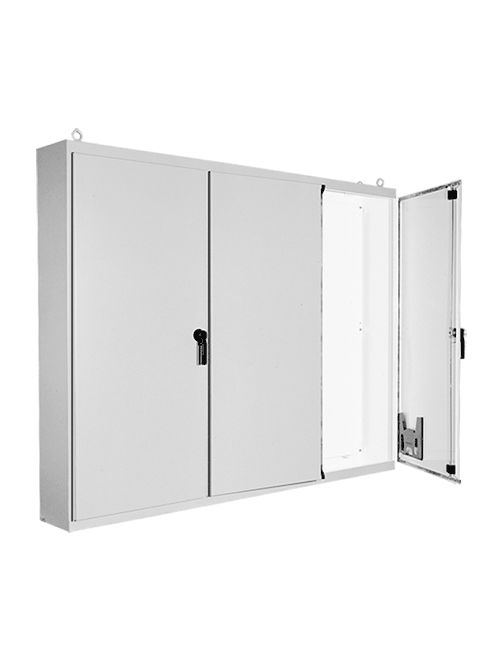

HOFF-E A86M3E20LP Type 12 3-Door En
$8,786.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A86M3E20LP
North Coast Part # 552354

Features

  • 12-gauge steel (.121-in.)
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy-duty lifting eyes anchored into reinforced top
  • Overlapping, gasketed openings on two-door centerposts
  • At two-door openings, gasketed overlapping doors eliminate need for centerposts
  • Three-point latches operated by padlocking handle
  • Concealed, easy-to-remove hinges
  • Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
  • Panel supports
  • Large data pocket is high-impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Available with panels included or panels purchased separately
  • Bonding provision on doors
  • Provisions for mounting fluorescent lights

Notes

  • Panels are furnished with enclosure. Removable panel not included with models ending in LP.

Accessories

  • Blower Fan Package
  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Electrical Interlocks
  • InterSafe Data Interface Ports, Type 4/4X/12
  • Panelite Enclosure Lights Overview

Specifications

  • Bulletin Number: A27
  • Material: Steel
  • Model Code: 16684
  • Ship Wt. Std. Pkg. (lbs): 1448.0
  • Interchangeable: False
  • Catalog Number: A86M3E20LP
  • A in.: 86.12
  • B in.: 112
  • C in.: 20.12
  • Interior Finish: White
  • Number of Doors: 3
  • Number of Lifting Eyes: 4
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55

Overview

UPC 78351016684
GTiN 00783510166847
Finish White
Width 112 in
Size 86.12x112.00x20.12 in
Type Free-Stand, Multi-Door, Type 12
Material Steel
Applications Enclosures are available with three, four or five doors for housing larger control systems in industrial environments.
Depth 20.12 in
Height 86.12 in
Standard CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997,CSA, File No. 42186, Type 12,IEC 60529, IP55
Family Brand Name Hoffman
Number of Doors 3
Sub Brand Hoffman
