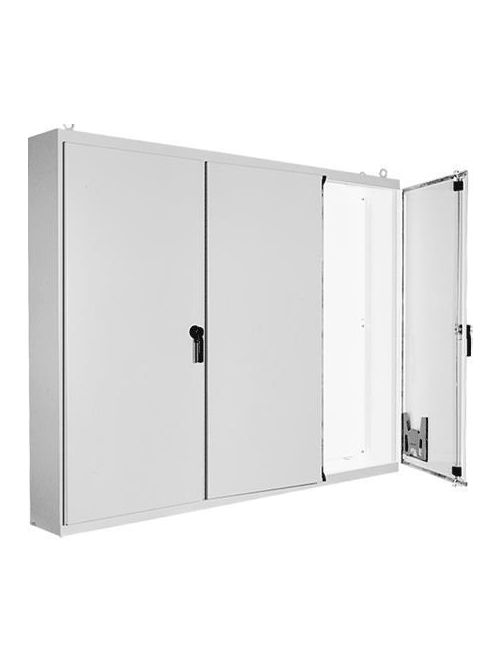

Hoffman A86M3ELP 86.12 x 112 x 14.12 Inch White Steel NEMA 12 3-Door Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A86M3ELP
North Coast Part # 819061


  • 12-gauge steel (.121-in.)
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy-duty lifting eyes anchored into reinforced top
  • Overlapping, gasketed openings on two-door centerposts
  • At two-door openings, gasketed overlapping doors eliminate need for centerposts
  • Three-point latches operated by padlocking handle
  • Concealed, easy-to-remove hinges
  • Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
  • Panel supports
  • Large data pocket is high-impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Available with panels included or panels purchased separately
  • Bonding provision on doors
  • Provisions for mounting fluorescent lights


  • Panels are furnished with enclosure. Removable panel not included with models ending in LP.


  • Blower Fan Package
  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Electrical Interlocks
  • InterSafe Data Interface Ports, Type 4/4X/12
  • Panelite Enclosure Lights Overview


  • Bulletin Number: A27
  • Material: Steel
  • Model Code: 16681
  • Ship Wt. Std. Pkg. (lbs): 1280.0
  • Interchangeable: False
  • Catalog Number: A86M3ELP
  • A in.: 86.12
  • B in.: 112
  • C in.: 14.12
  • Interior Finish: White
  • Number of Doors: 3
  • Number of Lifting Eyes: 4
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55


UPC 78351016681
GTiN 00783510166816
Finish White
Width 112 in
Size 86.12x112.00x14.12 in
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 14.12 in
Height 86.12 in
Standard CSA, File No. 42186, Type 12,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Number of Doors 3
Sub Brand Hoffman
