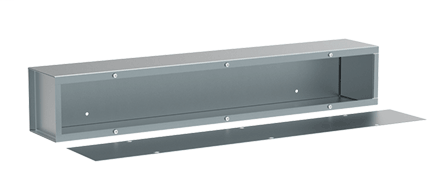

Hoffman A8824T1T 8 x 8 x 24 Inch NEMA 1 14 Gauge Plated Steel Wire Trough
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$129.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A8824T1T
North Coast Part # 1005294

Features

  • Keyhole screw slots in cover
  • Shipped completely assembled—no end caps to install
  • Mounting holes on the back of the enclosure
  • Flat cover fastened with plated steel screws
  • No gasketing or knockouts

Specifications

  • Type: Trough
  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 24
  • Depth (D) (millimetre): 610
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Mounting (G) (inch): 8
  • Mounting (G) (millimetre): 203
  • Mounting (H) (inch): 6.01
  • Mounting (H) (millimetre): 153
  • Modification Services: Yes
  • Type Number: Type 1
  • Wireway: Wiring Troughs
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 8.00x8.00x24.00 in
  • Depth: 24 in

Overview

UPC 78351011291
Item Long Description Screw-Cover Wiring Trough, Type 1 is used for protecting wire and cable distribution, junctions and terminations in a variety of indoor applications where protection against dirt or moist is not needed.
GTiN 00783510112912
Finish Galvanized
Width 8 in
Size 8.00x8.00x24.00 in
Color Gray
Type Plated Steel Screw-Cover Wiring Trough, Type 1
Material Steel
Applications Power Distribution
Depth 610 mm
Height 8 in
Standard CUL CSA C22.2 No. 26 Listed,File No. E27524,IEC 60529,IP30,NEMA/EEMAC: Type 1,UL 870 Listed
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Thickness 1.9 mm
