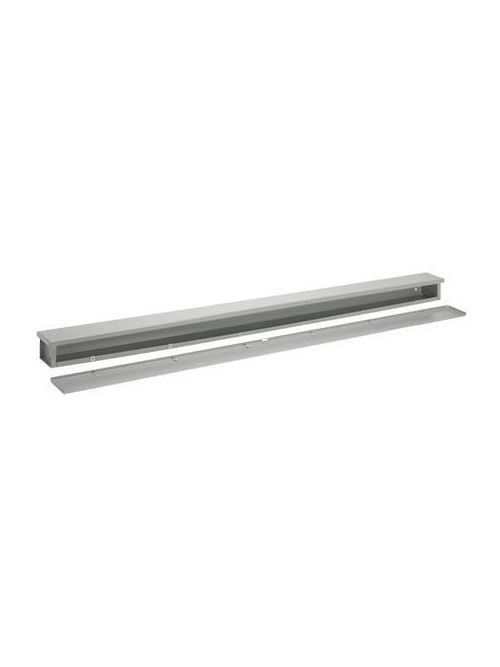

Hoffman A8836RT 8.00 x 8.00 x 36.00 Inch Wiring Trough
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$266.62/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A8836RT
North Coast Part # 215266

Features

  • Drip shield top and seam-free sides, front, and back
  • Slip-on removable cover
  • Embossed mounting holes on back of enclosure
  • Provision for padlocking
  • No gasketing or knockouts

Specifications

  • Type: Trough
  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 36
  • Depth (D) (millimetre): 914
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Wireway: Wiring Troughs
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 8.00x8.00x36.00 in
  • Depth: 36 in

Categories

Overview

UPC 78351038390
Item Long Description Screw-Cover Wiring Trough, Type 3R is used for protecting wire and cable distribution, junctions and terminations in outdoor applications that may be exposed to wet conditions. A Padlock Hasp Kit can be installed for increased security.
GTiN 00783510383909
Width 8 in
Size 8.00x8.00x36.00 in
Type Screw-Cover Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 914 mm
Height 8 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Finish Galvanized
Color Gray
Thickness 1.9 mm
