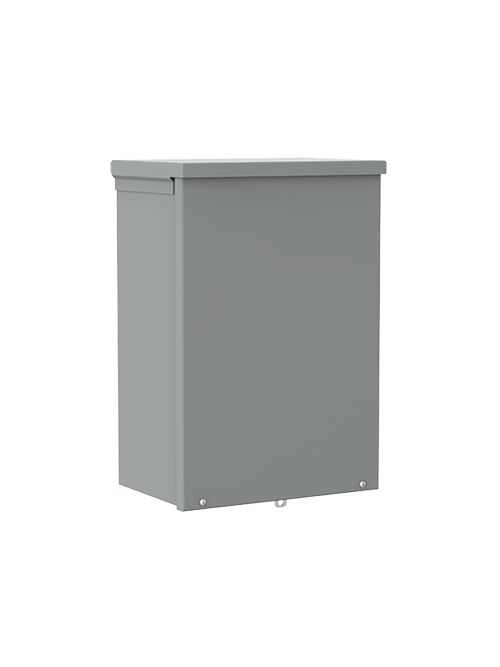

NVENT HOF A8R64NK 8x6x4 Screw Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$48.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A8R64NK
North Coast Part # 18442

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Handles on larger sizes (see table)
  • Embossed mounting holes on back of enclosure
  • Knockouts in bottom of 16 and 14 gauge enclosures
  • Provision for padlocking
  • No gasketing
  • Enclosures are finished with paint over plated surfaces

Specifications

  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 6
  • Width (W) (millimetre): 152
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • Knockouts Included: No
  • NEMA Rating: 3R Weather-resistant, except dust
  • Mounting (H) (inch): 2.25
  • Mounting (H) (millimetre): 57
  • Body Style: A
  • Mounting (J) (inch): 1.06
  • Mounting (J) (millimetre): 27
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.52
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Finish: Galvanized
  • Size: 8.00x6.00x4.00 in
  • Knockouts: No

Related Products

Accessory

  • AMFK3RL016
  • AGS816
  • AGLK2
  • AGS408
  • AGS416
  • AGS808
  • ATPPY61

Overview

GTiN 00783510134839
Finish Galvanized
Width 6 in
Size 8.00x6.00x4.00 in
Type Screw-Cover,Type 3R
Material Steel
Applications Power Distribution
Depth 102 mm
Height 8 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351013483
Color Gray
Body Thickness 1.52 mm

Substitutes (1)
