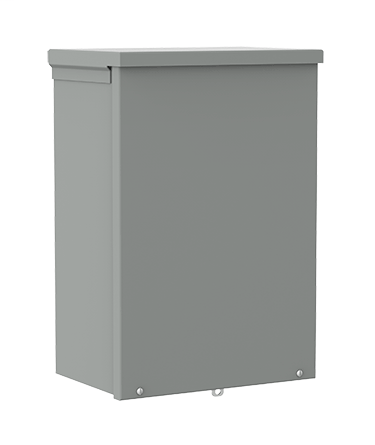

Hoffman A8R86 8 x 8 x 6 Inch Galvanized Steel NEMA 3R Screw Cover Enclosure
$58.46/ea
In Stock | 5 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A8R86
North Coast Part # 210645

Features

  • Drip shield top and seam-free sides, front and back
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Handles on larger sizes (see table)
  • Embossed mounting holes on back of enclosure
  • Knockouts in bottom of 16 and 14 gauge enclosures
  • Provision for padlocking
  • No gasketing
  • 16, 14 or 12 gauge galvanized steel

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Mounting Bracket Kit
  • Touch-Up Paint

Specifications

  • Bulletin Number: A90S3
  • Finish: ANSI 61
  • Material: Steel
  • Model Code: 38100
  • Ship Wt. Std. Pkg. (lbs): 28.0
  • Interchangeable: False
  • Catalog Number: A8R86
  • A in.: 8
  • B in.: 8
  • C in.: 6
  • Mounting H in.: 2.25
  • Knockout Pattern: F-G-H-I
  • Body Style: A
  • Mounting J in.: 1.06
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525 || NEMA/EEMAC Type 3R || IEC 60529, IP32
> View Substitutes (1)

Categories

Overview

UPC 78351038100
GTiN 7.8351E+11
Finish Zinc Plated
Width 8 in
Size 8.00x8.00x6.00 in
Color Gray
Type Screw-Cover,Type 3R
Material Steel
Applications Use this Enclosure with or without Knockouts in Outdoor Applications as a Wiring or Junction Box
Depth 6 in
Height 8 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
Family Brand Name Hoffman
Gauge 16, 14 or 12
Cover Type Screw
Sub Brand Hoffman
