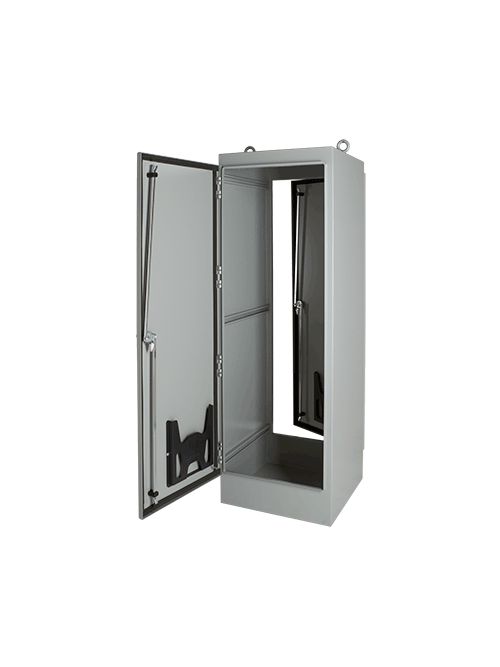

Hoffman A907224FSDG 90.06 x 72.06 x 24.06 Inch Gray 12 Gauge Steel NEMA 12 2-Door Free Stand Enclosure
$4,570.33/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A907224FSDG
North Coast Part # 879922

Features

  • 12 gauge steel
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oil-tight key-locking handle
  • Concealed, easy-to-remove hinges
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting fluorescent light

Notes

  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
  • Four lifting eyes are furnished if C = 30.06 (764mm) or more. Removable 12.00 x 12.00 (305mm x 305mm) data pocket included.

Accessories

  • Plate Casters
  • Electric Heater
  • Door Stop Kit
  • Compact Cooling Fans
  • Panelite Enclosure Lights Overview

Specifications

  • Bulletin Number: A30
  • Material: Steel
  • Model Code: 38829
  • Ship Wt. Std. Pkg. (lbs): 773.0
  • Interchangeable: False
  • Catalog Number: A907224FSDG
  • A in.: 90.06
  • B in.: 72.06
  • C in.: 24.06
  • F in.: 47.03
  • G in.: 38.12
  • H in.: 29.88
  • Description: Standard Product: Two-Door Single-Access
  • J in.: 30.03
  • Interior Finish: Gray
  • Number of Rack Units: 45
  • Number of Lifting Eyes: 2
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || E.I.A. RS310D || CSA, File No. 42186, Type 12 || IEC 60529, IP55 || Applicable industry standards only for enclosures with Seismic || Accessories: || NEBS- Telcordia GR-63-CORE Zone 4, tested with 1000lbs evenly distributed || OSHPD Pre-Approval OPM-0247-13

Overview

UPC 78351038829
GTiN 00783510388294
Finish Polyester Powder Painted
Width 1830 mm
Size 90.06x72.06x24.06 in
Color ANSI 61 Gray
Type Two Door, Free-Stand
Material Steel
Applications Available with Front or Front and Rear Access, These Type 12 Enclosures Have Sturdy Unibody Construction and Flexible Internal Mounting Options
Depth 611 mm
Height 2288 mm
Standard NEMA/EEMAC Type 12,E.I.A. RS310D,IP55,CUL Listed Per CSA C22.2 No. 94,CSA,File No. E61997,File No. 42186,Type 12,IEC 60529,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Mounting Type Floor
Gauge 12
Cover Type Two Door Single Access
