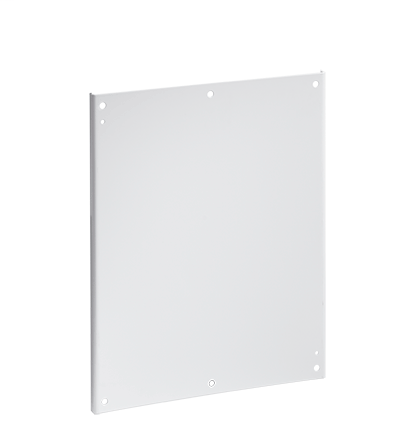

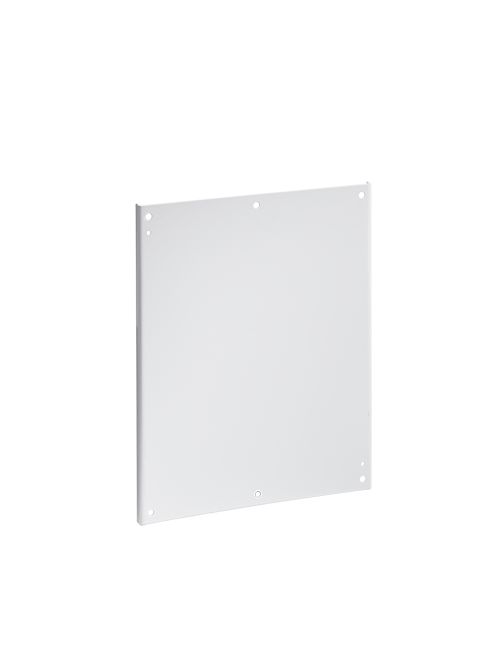

Hoffman A90P72F2 39.88 x 68 Inch Steel Half Enclosure Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,175.60/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90P72F2
North Coast Part # 824017

Features

  • Available in Full-Length and Half-Length
  • Plated mounting hardware is provided

Specifications

  • Material: Mild Steel
  • Fits Enclosure (A x B) (inch): 90.00 x 72.00
  • Fits Enclosure (A x B) (millimetre): 2286 x 1829
  • Panel Size (inch): 39.88 x 68.00
  • Panel Size (millimetre): 1013 x 1727
  • Modification Services: Yes
  • Color: White
  • Finish: Powder Coated
  • Thickness (T) (gauge): 11
  • Thickness (T) (millimetre): 3.04
  • Size: fits 90.06x72.06 in

Categories

Overview

UPC 78351027090
Item Long Description Panel for Free-Stand Single- and Dual-Access Two-Door Enclosures with Mounting Channel. Panels can be positioned anywhere along horizontal mounting channels (see Sections B-B for limitations). Half-length panels can be located in the upper or lower portion of the enclosure. Some assembly is required. Center support is furnished with each full-length or half-length panel for two-door enclosures. The center support attaches to the top and bottom mounting channels and can be positioned from front to back in the enclosure. The center support can be replaced with heavy duty panel supports to support panels when heavy equipment is installed.
GTiN 00783510270902
Finish Powder Coated
Width 68 in
Size fits 90.06x72.06 in
Type Panels and Panel Accessories
Material Steel
Applications Controls and Drives; Corrosive Environments; Power Distribution
Height 39.88 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color White
Thickness 3.04 mm
