Hoffman A90SP36F4 39.88 x 31 Inch Half Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,035.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90SP36F4
North Coast Part # 14965

Features

  • Panels are furnished with plated mounting hardware

Specifications

  • Material: Mild Steel
  • Panel Size (D x E) (inch): 39.88 x 30.81
  • Panel Size (D x E) (millimetre): 1013 x 783
  • Fits Enclosure (A x B) (inch): 90.00 x 36.00
  • Fits Enclosure (A x B) (millimetre): 2286 x 914
  • Modification Services: Yes
  • Color: White
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: fits 90.06x36.06 in

Categories

Overview

UPC 78351021390

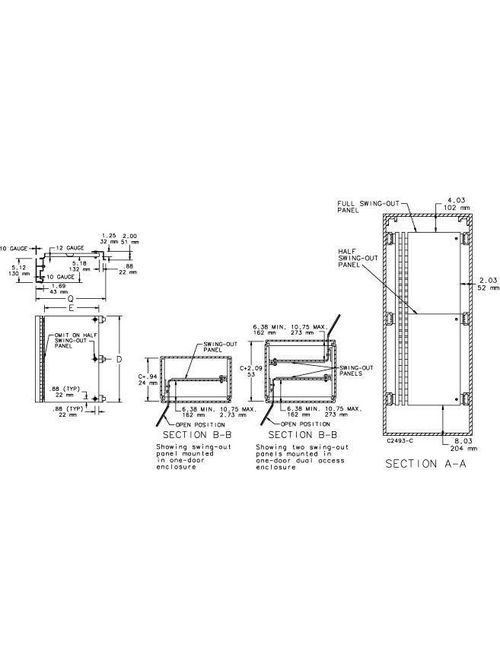

Item Long Description Swing-Out Panels are designed for Free-Stand Enclosure with Mounting Channel. Full-length and half-length swing-out panels are available. Half-length panels can be located in the upper or lower portion of the enclosures. Swing-out panels have two heavy-gauge continuous hinges which permit the panel to swing completely out of the enclosure if it is located within approximately 10.75 in. (273 mm) of the door. These panels can be mounted on either side of the enclosure.
GTiN 00783510213909
Finish Powder Coated
Width 31 in
Size fits 90.06x36.06 in
Type Panels and Panel Accessories
Material Steel
Applications Controls and Drives; Corrosive Environments; Power Distribution
Height 39.88 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color White
Thickness 2.66 mm
