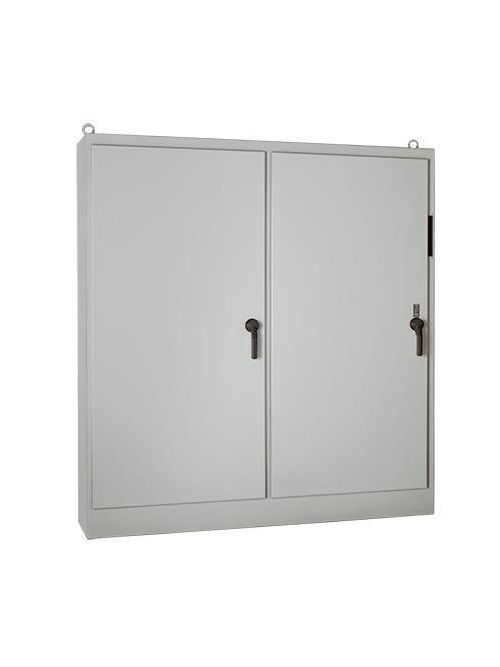

Hoffman A90XM6EW24FTC 90.12 x 235 x 24.12 Inch Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$23,319.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90XM6EW24FTC
North Coast Part # 761979

Features

  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
  • Panel supports
  • Data pocket is high-impact thermoplastic
  • Oil-resistant gasket

Specifications

  • Height (H) (inch): 90.12
  • Height (H) (millimetre): 2,289
  • Width (W) (inch): 197.75
  • Width (W) (millimetre): 5,023
  • Depth (D) (inch): 24.12
  • Depth (D) (millimetre): 613
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Large Painted Panel: A90PM78
  • Conductive Large Panel: A90PM78G
  • Large Panel Quantity: 3
  • Large Panel Size (inch): 78.00 x 72.00
  • Large Panel Size (millimetre): 1981 x 1829
  • With or Without Panel: With
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Finish: Powder Coated
  • Thickness (T) (gauge): 11
  • Thickness (T) (millimetre): 3.04
  • Size: 90.12x197.75x24.12 in

Related Products

Accessory

  • A90BP24G
  • A90BP24
  • A90PM78G
  • A90PM78
  • ECHC
  • WAMT
  • ABBSV
  • ABBSC
  • WAMTF
  • GEC
  • GEV
  • SITES
  • ABBLC
  • ABF
  • ABS
  • ECHV
  • SITEL
  • ABL
  • SQDV
  • SQDC
  • UBP
  • GSKTKITS375
  • LED24V15
  • LEDA1S35
  • LEDA2S35
  • ALFSWD
  • ADPX4C
  • ADPX4ALG
  • ADPX4A
  • ADPX4B
  • ADPX4BLG
  • ADPX4CLG
  • ALGDSTOP2
  • APWK175NF
  • APWK53NF
  • APWK138NF
  • APWK1212H
  • APWK2016H
  • AWDH3024N4
  • AWDH2416N4
  • APWK133NF
  • AWDH3624N4
  • APWK2020H
  • APWK2315NF
  • AWDH2430N4
  • APWK1711NF
  • APWK2420H
  • APWK95NF
  • AWDH2016N4
  • APWK1612H
  • AWDH1612N4
  • AWDH2420N4
  • APWK3024H
  • APWK3523NF
  • APWK2919NF
  • AWDH1418N4
  • AA61SHLF1218
  • AASHLF1218
  • AA61SHLF1818
  • AA61SHLF2424
  • AA35SHLF2424
  • AASHLF2424
  • AA35SHLF1218
  • AA35SHLF1818
  • AASHLF1818
  • GP2412
  • GP208
  • GP206
  • GP126
  • GP166
  • GP168
  • AGP1618
  • AGP618
  • DLGP610
  • GP128
  • GP248
  • AGP1218
  • DLGP618
  • AEK230
  • AEK115
  • AEK460

Overview

UPC 78351091500
Item Long Description Simple, heavy-duty and cost-effective, this disconnect enclosure can be ordered with one to six doors to fit a range of applications.
GTiN 00783510915001
Finish Powder Coated
Width 197.75 in
Size 90.12x197.75x24.12 in
Type Disconnect, Free-Stand
Material 91500
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 613 mm
Height 90.12 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 3.04 mm
