Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90XM7818FTCG
North Coast Part # 818132


  • .121-in. steel
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
  • Panel supports
  • Data pocket is high-impact thermoplastic
  • Oil-resistant gasket
  • Master door is far right-hand door on all enclosures
  • Defeater on primary door requires a screwdriver to open
  • Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
  • Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
  • Models available with panel included or panel sold separately
  • FTC models include removable painted 10 gauge steel panels which mount on collar studs
  • Includes door hardware


  • All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Cutler-Hammer C361 devices • Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Square D Class 9422 devices (see next paragraph for option)
  • The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.
  • Enclosures with panel include a painted panel. Order conductive panels separately.


  • Blank Adapter Plates, Mild Steel
  • Blower Fan Package
  • Floor Stand Kit
  • Operator Adapters for Universal Cutouts
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures


  • Bulletin Number: Steel
  • Material: 25706
  • Model Code: 1196.0
  • Ship Wt. Std. Pkg. (lbs): No
  • Catalog Number: A90XM7818FTCG
  • A in.: 90.12
  • B in.: 78.5
  • C in.: 18.12

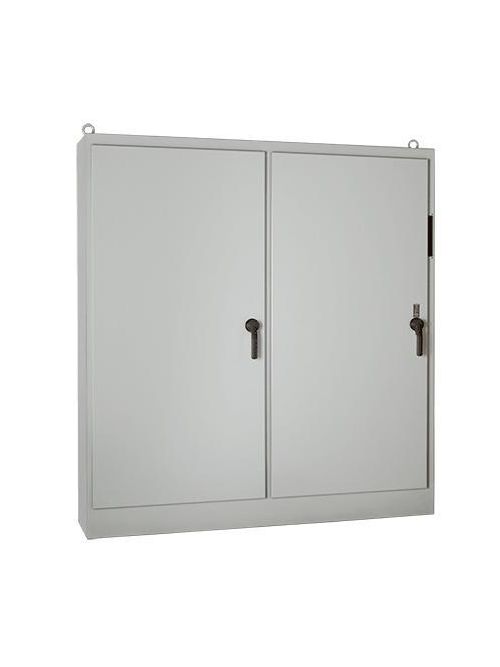

  • Description: Two-Door
  • Panel Size in.: 78.00 x 72.00
  • Conductive Panel: A90PM78G
  • Interior Finish: Gray
  • With or Without Panel: With
  • Painted Panel: A90PM78
  • Stiffener Locations in.: 24.00
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55Catalog weights & dimensions are careful estimates but not guaranteed.


UPC 78351025706
GTiN 00783510257064
Finish Gray
Width 78.5 in
Size 90.12x78.50x18.12 in
Color Gray
Type Disconnect, Free-Stand
Material 25706
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 18.12 in
Height 90.12 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,IEC 60529, IP55Catalog Weights & Dimensions Are Careful Estimates But Not Guaranteed.,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
