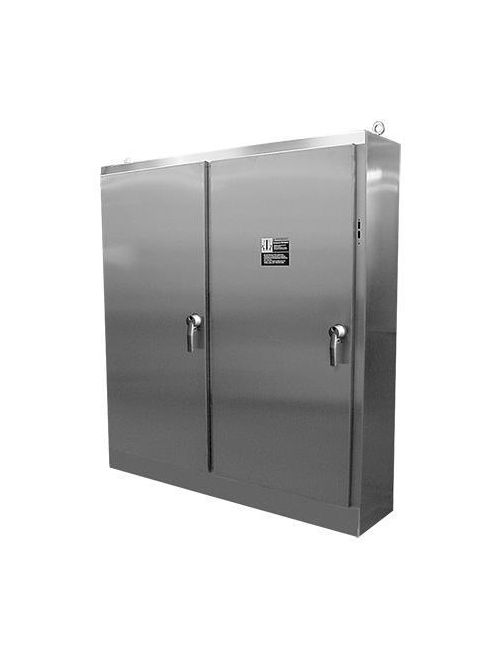

Hoffman A90XM7818SSN4 Type 4X 2-Door Free Stand Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
$29,973.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90XM7818SSN4
North Coast Part # 757207

Features

  • Disconnect enclosure is designed to house electronic controls
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Heavy-gauge continuous hinges
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
  • Panel supports
  • Data pocket is high-impact thermoplastic

Specifications

  • Height (H): 2,289 millimetre
  • Width (W): 1,994 millimetre
  • Depth (D): 460 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size: 1981 x 1829 millimetre
  • Conductive Panel: A90PM78G
  • Panel: A90PM78
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T): 2.78 millimetre

Related Products

Accessory

  • A90BP18
  • A90BP18G
  • A90PM78G
  • A90PM78
  • APCABVA
  • APCITE
  • APCSDA
  • APCGETDA
  • APCCHVA
  • A2128BAPSS
  • GSKTKITS375
  • LEDA2S35
  • LED24V15
  • LEDA1S35
  • ALFSWD
  • ADPX4CSS
  • ADPX4ASS
  • ADPX4BSS
  • ADSTOPKSS6
  • AWDH2420N4SS
  • APWK53NFNM
  • AWDH1418N4SS
  • APWK2919NFSS
  • APWK95NFNM
  • APWK116NFNM
  • AWDH3624N4SS
  • APWK720NFSS
  • APWK2315NFSS
  • AWDH2430N4SS
  • AWDH2416N4SS
  • APWK715NFSS
  • APWK138NFNM
  • APWK53NFSS
  • AWDH3024N4SS
  • APWK724NFSS
  • APWK729NFSS
  • APWK138NFSS
  • APWK711NFSS
  • AWDH1612N4SS
  • APWK95NFSS
  • APWK1711NFSS
  • AWDH2016N4SS
  • ACSHELF1212SS
  • ACSHELF1818SS
  • GP166SS6
  • GP168SS6
  • GP126SS6
  • GP2412SS6
  • GP208SS6
  • GP128SS6
  • GP248SS6
  • GP206SS6
  • AFK1218SS6
  • AFK1818SS
  • AFK2418SS6
  • AFK0618SS6
  • WSFSLKSS
  • AFK1818SS6
  • AFK1218SS
  • AFK2418SS
  • WSASLKSS
  • AFK0618SS
  • AEK460
  • AEK115
  • AEK230

Overview

UPC 78351011128
GTiN 00783510111281
Width 78.5 in
Size 90.12x78.50x18.12 in
Type Disconnect, Free-Stand
Material STAINLESS STEEL
Applications Arc Flash Safety; Controls and Drives; Corrosive Environments
Depth 18.12 in
Height 90.12 in
Standard 12,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,Type 4,UL 508A Listed 508
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 2.78 Millimetre mm
