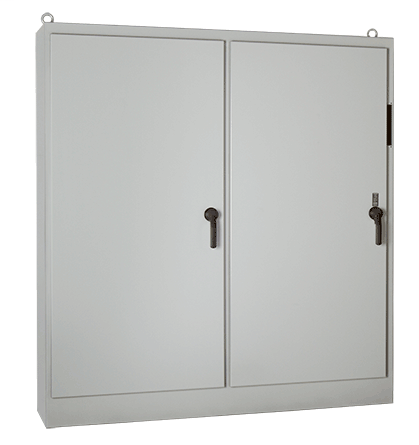

Hoffman A90XM7824FTCLP 2-Door Free Stand Disconnect Enclosure

Features

• .121-in. steel
• Seams continuously welded and ground smooth
• Body stiffeners in larger enclosures for extra rigidity
• Body flange trough excludes liquids and contaminants
• Heavy-duty lifting eyes anchor into reinforced top
• Removable centerposts permit easy panel installation
• Concealed, easy-to-remove hinges
• Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
• Panel supports
• Data pocket is high-impact thermoplastic
• Oil-resistant gasket
• Master door is far right-hand door on all enclosures
• Defeater on primary door requires a screwdriver to open
• Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
• Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
• Models available with panel included or panel sold separately
• FTC models include removable painted 10 gauge steel panels which mount on collar studs
• Includes door hardware

Notes

• All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Cutler-Hammer C361 devices • Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Square D Class 9422 devices (see next paragraph for option)
• The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.
• Enclosures with panel include a painted panel. Order conductive panels separately.

Accessories

• Blank Adapter Plates, Mild Steel
• Blower Fan Package
• Floor Stand Kit
• Operator Adapters for Universal Cutouts
• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Specifications

• Bulletin Number: Steel
• Material: 13604
• Model Code: 1037.0
• Ship Wt. Std. Pkg. (lbs): False
• Interchangeable: Steel/paint
• Catalog Number: A90XM7824FTCLP
• A in.: 90.12
• B in.: 78.5
• C in.: 24.12
• Description: Two-Door
• Interior Finish: White
• With or Without Panel: Without
• Stiffener Locations in.: 24.00
• Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55
