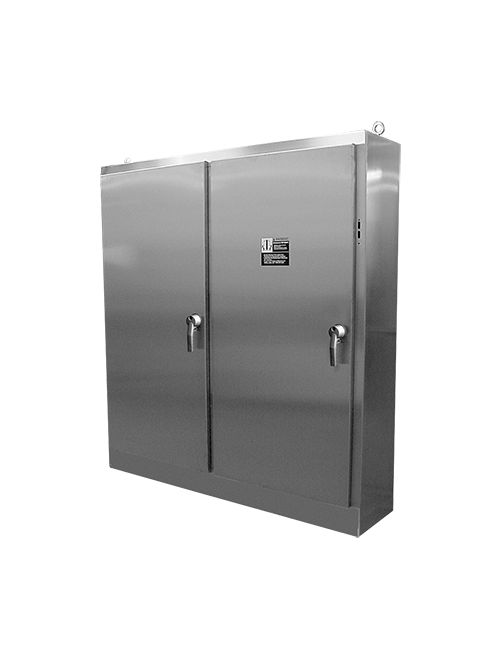

Hoffman A90XM7824SSN4 90.12 x 78.5 x 24.12 Inch 12 Gauge 304 Stainless Steel NEMA 4X 2-Door Disconnect Enclosure
$30,664.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A90XM7824SSN4
North Coast Part # 675978

Features

  • Manufactured from 12 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Heavy-gauge continuous hinges
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
  • Panel supports
  • Data pocket is high-impact thermoplastic
  • Seamless foam-in-place gasket provides oil-tight and dust-tight seal against contaminants
  • Removable 10 gauge steel panels mount on collar studs
  • Master door is far right-hand door on all enclosures
  • Type 316 stainless steel handle with defeater on master door
  • Type 316 stainless steel handle (non-defeater) on slave door
  • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
  • Preferred cutout on right flange provides mounting for most disconnect operators
  • Bonding provision on doors; grounding studs on body
  • Accessory mounting channel provided in enclosure to

Notes

  • White mild steel panels are furnished with enclosure. Optional conductive panels are available.
  • All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Schneider Square D Class 9422 devices (see next paragraph for option)
  • The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

Accessories

  • Electric Heater
  • Compact Cooling Fans
  • Floor Stand Kit
  • Panelite™ Enclosure Lights Overview
  • Operator Adapters for Preferred Cutouts
  • An operator adapter for a preferred cutout must be ordered separately

Specifications

  • Bulletin Number: A28S4
  • Model Code: 11134
  • Ship Wt. Std. Pkg. (lbs): 1208.0
  • Interchangeable: False
  • Catalog Number: A90XM7824SSN4
  • A in.: 90.12
  • B in.: 78.5
  • C in.: 24.12
  • Description: Two-Door Enclosures
  • Panel Size in.: 78.00 x 72.00
  • Conductive Panel: A90PM78G
  • Panel: A90PM78
  • Standards: UL 508A Listed 508; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, Type 4, 4X, 12 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351011134
GTiN 00783510111342
Width 78.5 in
Size 90.12x78.50x24.12 in
Type Stainless Steel Heavy-Duty Free-Stand Enclosures for Flange-Mount Disconnects, Type 4X
Material STAINLESS STEEL
Applications This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers.
Depth 24.12 in
Height 90.12 in
Standard 4,CSA File No. 42186: Type 4,12,NEMA/EEMAC Type 3R,File No. E61997,CUL Listed Per CSA C22.2 No. 94,Type 4,IEC 60529,4X,IP66,Meets NEMA Type 3RX Requirements,Type 3R,UL 508A Listed 508
Family Brand Name Hoffman
Sub Brand Hoffman
