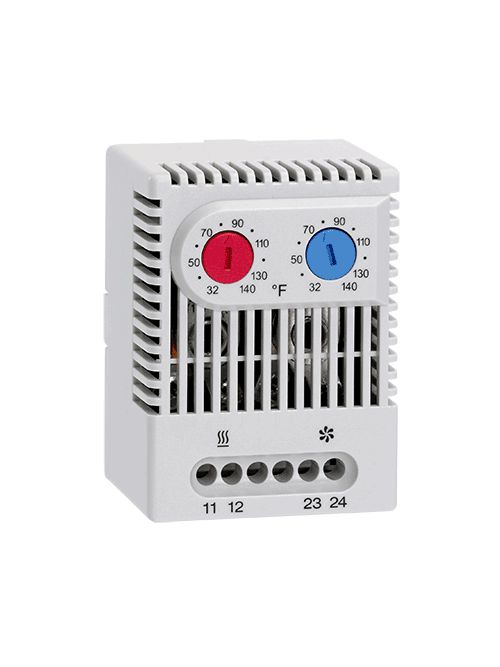

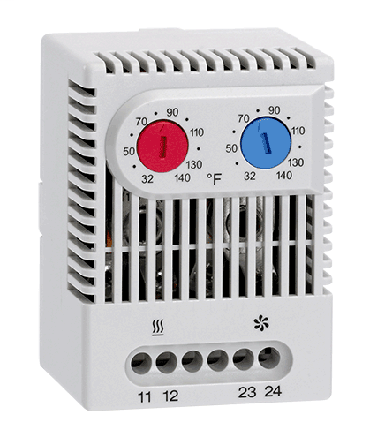

Hoffman ADLTEMP 1NO 1NC Light Gray Plastic Dual Thermostat
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$211.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ADLTEMP
North Coast Part # 335766

Features

  • Two thermostats; one normally closed (NC), red, and one normally open (NO), blue, in one casing
  • Wide adjustable temperature range (32 -140 F)
  • Thermostatic bimetallic sensor element
  • Connection is a 4-pole terminal for AWG 14 max (2.5 mm sq)
  • Mounting clip for 35-mm DIN rail

Specifications

  • Height (H) (inch): 2.64
  • Height (H) (millimetre): 67
  • Width (W) (inch): 1.97
  • Width (W) (millimetre): 50.038
  • Depth (D) (inch): 1.81
  • Depth (D) (millimetre): 46
  • Material: Plastic
  • Width (millimetre): 50
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Size: 2.64 x 1.97 x 1.81 in

Categories

Overview

UPC 78351016451
Item Long Description Two thermostats in one, the Dual Thermostat independently controls equipment heating and cooling systems.
GTiN 00783510164515
Width 1.97 in
Type Dual
Applications Controls Equipment Heating and Cooling Systems
Depth 46 mm
Height 2.64 in
Standard CE,CSA File No. 215952,CURus,File No. E164102
Family Brand Name Hoffman
Sub Brand Hoffman
Size 2.64 x 1.97 x 1.81 in
Finish Matte
Color Gray
