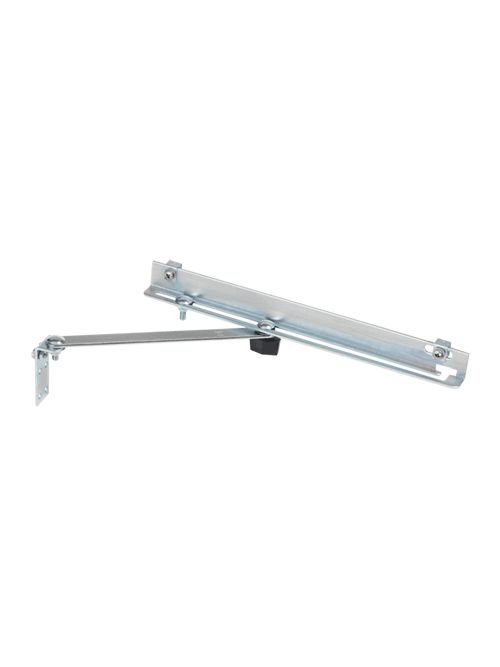

Hoffman ADSTOPK Door Stop Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$171.39/ea
In Stock | 7 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ADSTOPK
North Coast Part # 59281

Features

  • Can be mounted at the top or bottom of the door opening
  • The angle of the door is easily adjusted by means of a wingnut
  • The stop arm slides neatly out of the way when the door is closed
  • Maintains UL/CSA Type 4, 4X, and 12 if properly installed in HOFFMAN enclosures
  • Stainless steel mounting screws and nylon washers are included

Specifications

  • Material: Mild Steel
  • Modification Services: Yes
  • Accessory Type: Door Accessories
  • Color: Unpainted
  • Finish: Plated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: fits Type 12 Encl. in

Categories

Overview

UPC 78351025600
Item Long Description Designed for use on most standard HOFFMAN Type 4 and 12 enclosures to secure the door in an open position. Enclosures must have a B dimension of 16.00 in. (406 mm) or more and a door which opens horizontally. Door Stop Kit is not intended for use on Concept window door enclosures, or enclosures configured with a swing-out panel or swing-out rack frame. Door stop kit is not intended for use in high-wind conditions.
GTiN 00783510256005
Finish Zinc Plated
Size 13-1/2 in L x 4-1/4 in W x 3 in H
Color Plated Steel
Type Door Stop Kit
Material Steel
Applications For Secure the Door in the Open Position
Family Brand Name Hoffman
Used With Most Standard Hoffman Type 4 and 12 Enclosures
Sub Brand Hoffman
Thickness 1.9 mm
