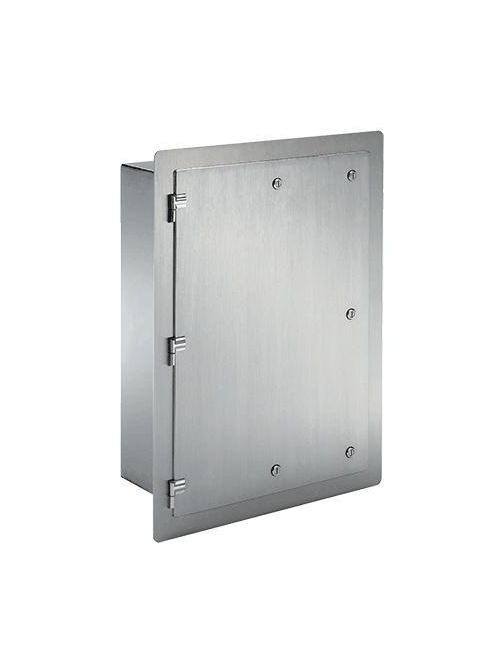

FLUSH MOUNT HINGED
$8,125.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # AFM302410SS
North Coast Part # 762144

Features

  • Specifically designed for pharmaceutical industry—flush mounting and flat surfaces eliminate areas where contaminants can accumulate
  • Low RA value of PharmaPro finish minimizes surface crevices, allowing for a thorough wipe-down
  • Enclosure does not protrude into the manufacturing area
  • Mounting system included
  • Enclosure body manufactured from 14 gauge Type 304 stainless steel
  • Mounting flange manufactured from 10 gauge Type 316L stainless steel
  • Screw cover and hinged door manufactured from 12 gauge Type 316L stainless steel
  • Seams continuously welded and ground smooth
  • Type 316L stainless steel lift-off hinges used with hinged door
  • Type 316L stainless steel slotted oval-head fasteners used with screw cover
  • Stainless steel quarter-turn latches used with hinged door
  • FDA-approved silicone gasket
  • Grounding stud on body; bonding provision on cover or door

Accessories

  • Industrial Corrosion Inhibitors
  • Concept Panels

Specifications

  • Bulletin Number: A20S
  • Material: Stainless Steel
  • Model Code: 14908
  • Ship Wt. Std. Pkg. (lbs): 78.0
  • Interchangeable: False
  • Catalog Number: AFM302410SS
  • A in.: 30
  • B in.: 24
  • C in.: 10
  • Panel: CP3024
  • Body Gauge: 14
  • Door Gauge: 12
  • Latches Qty.: 8
  • Size of Mounting Cutout in.: 31.00 x 25.00
  • Standards: UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66

Overview

UPC 78351014908
GTiN 00783510149086
Width 24 in
Size 30.00x24.00x1.00 in
Type PHARMAPRO, Type 4X
Material Stainless Steel
Applications PHARMAPRO Enclosures are specifically designed for the pharmaceutical industry with flush mounting and a low RA value finish that minimizes surface crevices for thorough wipe-downs and eliminates areas where contaminants can accumulate. The mounting system pulls the enclosure flush and tight to the wall and can be used on block or stud walls.
Depth 10 in
Height 30 in
Standard IEC 60529, IP66,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997,UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997,NEMA/EEMAC Type 4, 4X, 12, 13
Family Brand Name Hoffman
Door Gauge 12
Body Gauge 14
Number of Latches 8
Sub Brand Hoffman
