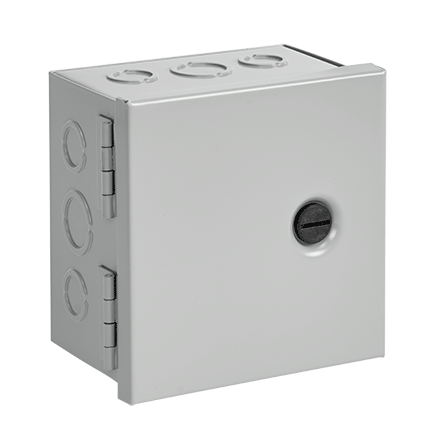

Hoffman AHE16X12X4 16.00 x 12.00 x 4.00 Inch Pull Box
$59.35/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # AHE16X12X4
North Coast Part # 545089

Features

  • Various sizes of easily removable concentric knockouts on all four sides
  • Butt hinges
  • Mounting holes on back of box
  • Provision for grounding
  • 16 or 14 gauge steel

Accessories

  • T-Handle Latch and Keyed Cylinder Lock Kits
  • Grounding Device
  • Touch-Up Paint

Specifications

  • Bulletin Number: A90HC
  • Material: Steel
  • Model Code: 86530
  • Ship Wt. Std. Pkg. (lbs): 12.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: AHE16X12X4
  • A in.: 16
  • B in.: 12
  • C in.: 4
  • Knockout Pattern along A Sides: B-C-D-E-F-G-H
  • Knockout Pattern along B Sides: C-D-E-F-G
  • Standards: UL 50, 50E Listed; Type 1; File No. E27525 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525 || NEMA/EEMAC Type 1 || CSA, File 42184: Type 1 || IEC 60529, IP30

Categories

Overview

UPC 78351086530
GTiN 00783510865306
Finish Powder Coated
Width 305 mm
Size 16.00x12.00x4.00 in
Color Gray
Type Single Lock, Single Door
Material Steel
Applications Recessed, Slotted Flush Latch for Security as well as Knockouts on all Four Sides, Making Them Suitable for a Wide Variety of Applications
Mounting Type Wall
Depth 102 mm
Height 406 mm
Standard CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27525
Family Brand Name Hoffman
Gauge 14 and 16
Cover Type Hinged
Sub Brand Hoffman
