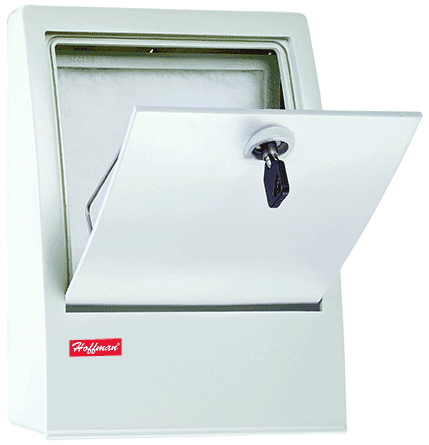

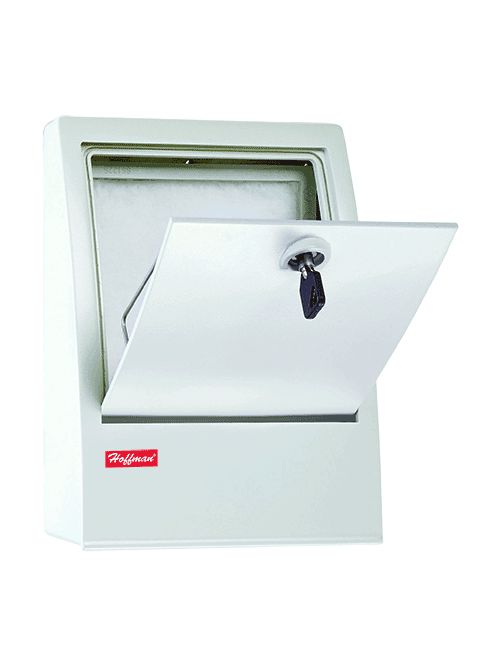

Hoffman AOFF118 120 Volt 11.8 CFM Outdoor Exhaust Filter and Grill
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$817.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # AOFF118
North Coast Part # 349821

Features

  • The fan has a ball bearing axial with a service life minimum of 50,000 hours at 77 F (25 C) and 65 percent relative humidity.
  • Airflow 11.8 CFM (20 cubic meters/hour) free blowing
  • Aluminum fan body, plastic impeller
  • Removable F5 filter
  • Lockable door in hood
  • Two-sided tape provided
  • Filter hood permanently fixed to enclosure from inside
  • 2 lead wires, 3.94-inch (100-mm) long, with pressure clamps, 14 gauge max. (2.5 mm)
  • Synthetic filter material, temperature resistant to 212 F (100 C), self-extinguishing class F1, moisture resistant to 100 percent RH
  • Filter mat: Fine grade F5 to DIN EN779 filtering degree: 98 percent of particles larger than 10 ┬Ám (10 microns)

Specifications

  • Height (H) (inch): 8.82
  • Height (H) (millimetre): 224.028
  • Width (W) (inch): 6.5
  • Width (W) (millimetre): 165.1
  • Depth (D) (inch): 5
  • Depth (D) (millimetre): 127
  • Material: Plastic
  • Frequency (hertz): 60
  • External Mounting Depth (inch): 2.56
  • External Mounting Depth (millimetre): 65
  • Internal Mounting Depth (inch): 2.44
  • Internal Mounting Depth (millimetre): 62
  • Enclosure Cutout (inch): 4.92 x 4.92
  • Enclosure Cutout (millimetre): 125 x 125
  • Color: Light Gray
  • Finish: Smooth Matte
  • Voltage Rating: 100 - 120 VAC
  • Frequency Rating: 60
  • Amperage Rating: 0.3 A

Overview

GTiN 00783510164522
Voltage 120 Volt
Type Outdoor Filter Fan And Exhaust Package
Applications Controls and Drives; Power Distribution
Standard CE,CURus Type 12,File No. E234324,IEC/EN60529,IP55,NEMA Type 3R
Family Brand Name Hoffman
Max Current 0.3 A
Sub Brand Hoffman
Product UPC 78351016452
Finish Matte
Color Gray
Width 6.5 in
Depth 127 mm
Height 8.82 in
Material Plastic
