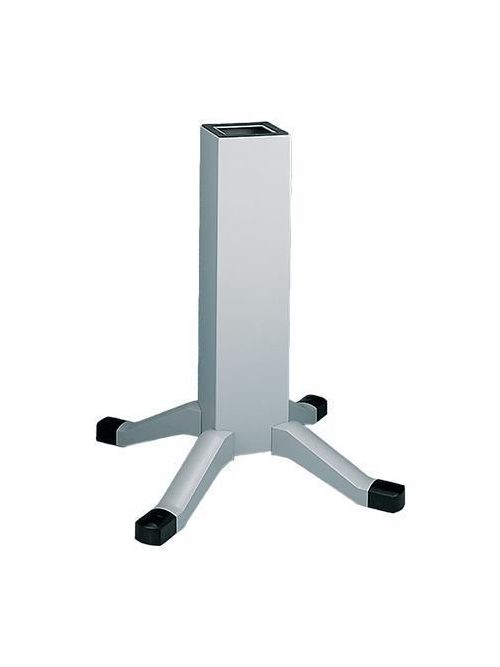

Hoffman AP26L88 23 Inch Tall Pedestal with Legs
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,615.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # AP26L88
North Coast Part # 1164362

Features

  • Use 4.00 x 4.00-in. (102 x 102-mm) pedestal with Concept HMI and InLine HMI Enclosures
  • Use 8.00 x 8.00-in. (203 x 203-mm) pedestal with ProLine Sloped-Front HMI Enclosures
  • Attach pedestal to HMI base with cutout, swivel, swivel tilt or angle adapter with pre-drilled holes
  • Hardware and gasket to attach enclosure are included

Specifications

  • Height (H) (inch): 26
  • Height (H) (millimetre): 660
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Material: Mild Steel
  • Modification Services: Yes
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 26.00x8.00x8.00 in

Overview

UPC 78351037690
Item Long Description Pedestal with legs is used to support various HMI enclosures and provides optimal viewing and operating height. Four sturdy, die-cast legs bolt to the one-piece mild steel vertical tube for rigidity. Legs will accept casters in limited applications. Heavy-duty black polymer caps fit on ends of legs to cover bolts or levelers. Two heights are available as standard offering to meet your ergonomic requirements.
GTiN 00783510376901
Width 8 in
Size 26.00x8.00x8.00 in
Color Gray
Type Pedestals
Material Steel
Applications Controls and Drives
Depth 203 mm
Height 26 in
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Powder Coated
Thickness 1.9 mm
