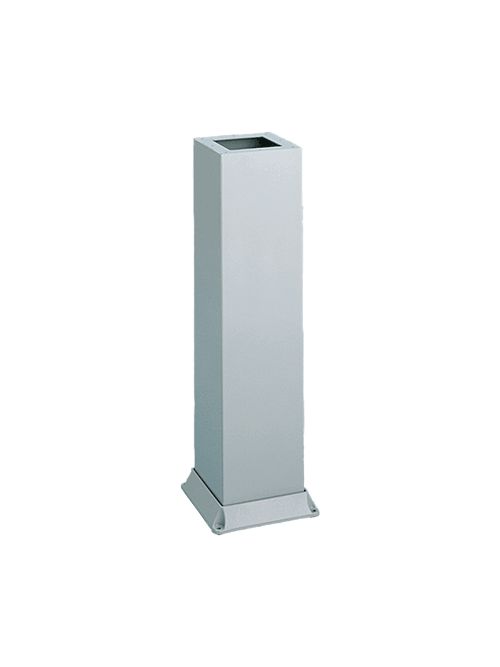

Hoffman AP33B88LG 33 x 8 x 8 Inch Light Gray Steel Bolt-Down Pedestal
$1,102.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # AP33B88LG
North Coast Part # 1093971

Features

  • Bolt-Down Pedestal is available in two heights. The vertical tube has rigid one-piece construction. Rigid cast aluminum base flanges bolt to the vertical tube. Pedestal has ANSI 61 medium-gray or RAL 7035 textured light-gray polyester powder paint finish. Tapped mounting holes in the top of pedestal allow attachment to operator interface base with cutout, swivel, swivel tilt or angle adapter. Hardware and gasket to attach enclosure are included.
  • Use 4.00 x 4.00-in. (102 x 102-mm) pedestal with Concept HMI and InLine HMI Enclosures
  • Use 8.00 x 8.00-in. (203 x 203-mm) pedestal with ProLine Sloped-Front Enclosures

Specifications

  • Bulletin Number: P1
  • Material: Steel
  • Model Code: 42429
  • Ship Wt. Std. Pkg. (lbs): 23.5
  • Interchangeable: False
  • Catalog Number: AP33B88LG
  • A in.: 33
  • B in.: 8
  • C in.: 8
  • D in.: 10.25
  • E in.: 9.25
  • Description: Steel

Categories

Overview

UPC 78351042429
GTiN 00783510424299
Width 9.25 in
Size 33.00x8.00x8.00 in
Color RAL 7035
Type Bolt-Down Pedestal
Material Steel
Applications Bolt-Down Pedestal is available in two heights. The vertical tube has rigid one-piece construction. Rigid cast aluminum base flanges bolt to the vertical tube. Pedestal has ANSI 61 medium-gray or RAL 7035 textured light-gray polyester powder paint finish.
Depth 8 in
Height 10.25 in
Family Brand Name Hoffman
Sub Brand Hoffman
