Hoffman APE6SS Stainless Steel Pedestal Extension Fits 8 x 8 Inch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,631.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # APE6SS
North Coast Part # 936781

Features

  • Gasket and mounting hardware is included

Specifications

  • Height (H) (inch): 6
  • Height (H) (millimetre): 152
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Material: Stainless Steel 304
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Brushed
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Sub Brand: APX
  • Size: 6.00x8.00x8.00 in

Overview

UPC 78351037630

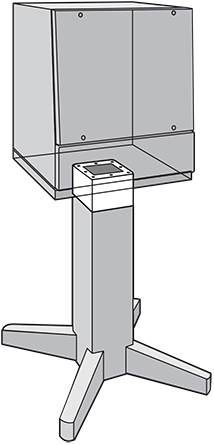

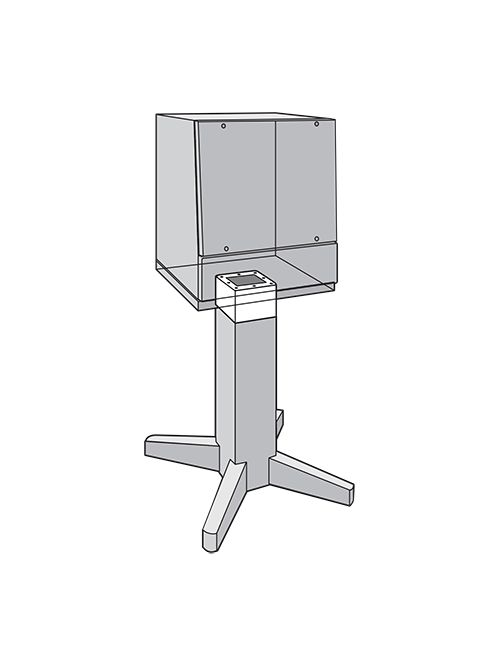

Item Long Description Pedestal Extension, Stainless Steel can be used with Stainless Steel Pedestal to provide additional 6-in. (152-mm) of height for standing position. Extension will accept pedestal accessories that are not stainless steel. These include swivel tilt, swivel and angle adapters.
GTiN 00783510376307
Width 8 in
Size 6.00x8.00x8.00 in
Type HMI Accessories
Material 304 Stainless Steel
Applications Controls and Drives
Depth 203 mm
Height 6 in
Family Brand Name Hoffman
Sub Brand APX
Finish Smooth Brushed
Blade Dimensions 8 in L x 8 in W x 6 in H
Used With Concept HMI and In-Line HMI Enclosures
Thickness 1.98 mm
