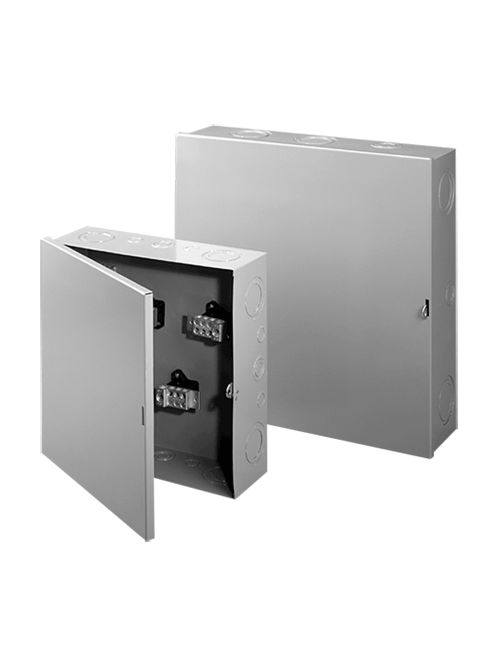

NVENT HOF ASB83R Splitter Box 3 wir
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$86.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ASB83R
North Coast Part # 1747848

Features

  • Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
  • Hinged covers
  • Mounting holes in back
  • Includes single point ground lug
  • Ground Splitter (ground bar) accessory available

Specifications

  • Height (H) (inch): 12
  • Height (H) (millimetre): 305
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Wire Quantity: 3
  • Main Lug Amps CU (ampere): 85
  • Main Lug Wire Size (1000 circular mil): 14-1
  • Main Lug Quantity: 1
  • Branch Lug Amps CU (ampere): 55
  • Branch Lug Wire Size: 14-6
  • Modification Services: Yes
  • Type Number: Type 1
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 12.00x12.00x4.00 in

Categories

Overview

UPC 78351013865
Item Long Description Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors and comes with pre-installed terminal blocks for three- and four-wire power distribution systems.
GTiN 00783510138653
Length 12 in
Finish Powder Coated
Width 12 in
Size 12.00x12.00x4.00 in
Color Gray
Type 3-Wire
Material 16 or 14 ga Steel
Applications Power Distribution
Mounting Type Surface
Depth 4 in
Height 12 in
Standard CSA C22.2 No. 76,File No. 42184: Type 1,IEC 60529,IP30,NEMA/EEMAC Type 1
Family Brand Name Hoffman
Number of Wires 3
Sub Brand Hoffman
Thickness 1.52 mm
