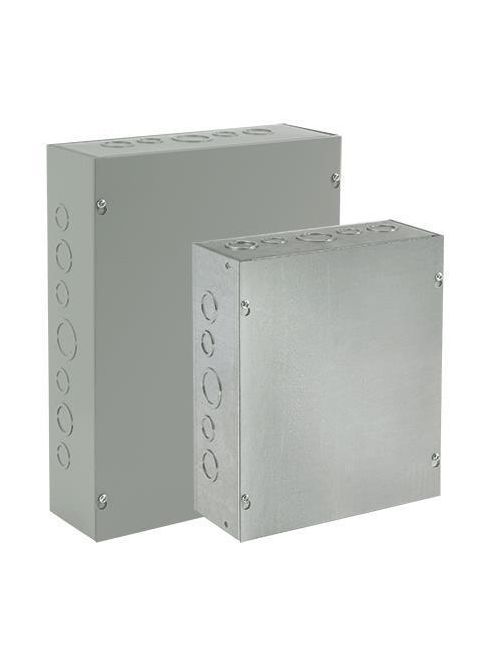

Hoffman ASE24X12X8 Painted Steel NEMA 1 Screw Cover Pull Box with Knockout
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ASE24X12X8
North Coast Part # 603925


  • Unique keyhole screw slots in the cover
  • Available with or without knockouts. Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts.
  • Optional flush-mounted door frame available
  • Optional flush covers
  • Flat, removable covers fastened with plated steel screws
  • Provision for grounding
  • Mounting holes on back of box
  • 16, 14 or 12 gauge steel or plated steel


  • Flush Covers
  • Flush-Mount Door Frames
  • Grounding Device
  • Type 1 Locking Window Pull Box Accessory
  • Touch-Up Paint


  • Bulletin Number: A90P1
  • Material: Steel
  • Model Code: 13362
  • Ship Wt. Std. Pkg. (lbs): 21.1
  • Interchangeable: False
  • Finish: Steel/Gray
  • Catalog Number: ASE24X12X8
  • A in.: 24
  • B in.: 12
  • C in.: 8
  • Style: Painted
  • Number of Cover Screws: 4
  • Knockout Pattern along A Sides: A-B-C-D-E-F-G-H-I
  • Knockout Pattern along B Sides: C-D-E-F-G
  • Standards: UL 50, 50E Listed; Type 1; File No. E27525 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525 || NEMA/EEMAC Type 1 || IEC 60529, IP30


UPC 78351013362
GTiN 00783510133627
Finish Steel/Gray
Width 12 in
Size 24.00x12.00x8.00 in
Color Gray
Type Screw-Cover, Type 1
Material Steel
Applications Use this enclosure in commercial and general industrial applications that require a junction or pull box. For flush installations, order flush covers and door frames separately.
Depth 8 in
Height 24 in
Standard UL 50, 50E Listed; Type 1; File No. E27525,NEMA/EEMAC Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,IEC 60529, IP30
Number of Screws 4
Family Brand Name Hoffman
Sub Brand Hoffman
