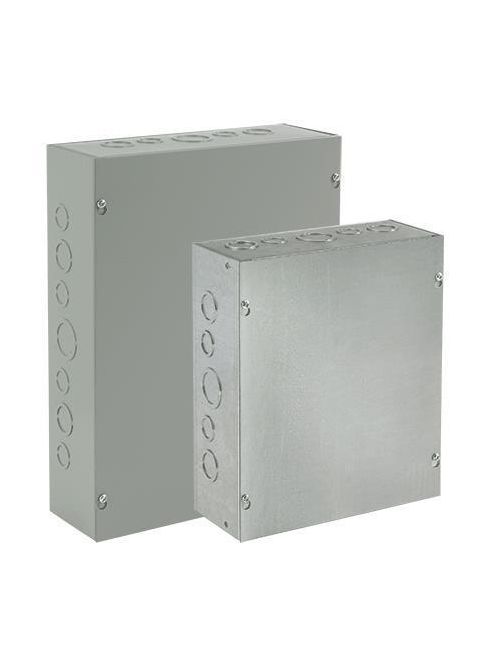

Hoffman ASG12X8X4NK Galvanized Steel NEMA 1 Screw Cover Pull Box without Knockouts
Product image thumbnail 0
Product image thumbnail 1
$53.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ASG12X8X4NK
North Coast Part # 603964

Features

  • Unique keyhole screw slots in the cover
  • Available with or without knockouts
  • Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
  • Optional flush-mounted door frame available
  • Optional flush covers
  • Flat, removable covers fastened with plated steel screws
  • Provision for grounding
  • Mounting holes on back of box
  • Enclosures are finished with paint over plated surfaces

Specifications

  • Height (H): 305 millimetre
  • Width (W): 203 millimetre
  • Depth (D): 102 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Style: Galvanized
  • Knockouts Included: No
  • Cover Screw Quantity: 4
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Body Thickness: 1.52 millimetre
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness: 1.52 millimetre
  • Finish: Galvanized

Related Products

Accessory

  • A1284SUG
  • AFE12X8
  • AGLK2
  • AGS408
  • AGS416
  • AGS808
  • AGS816

Overview

UPC 78351042350
GTiN 00783510423506
Width 8 in
Size 12.00x8.00x4.00 in
Type Type 1 Boxes and Enclosures
Material Steel
Applications Power Distribution
Depth 4 in
Height 12 in
Standard CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27525
Number of Screws 4
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Galvanized
Color Gray
Style Galvanized
