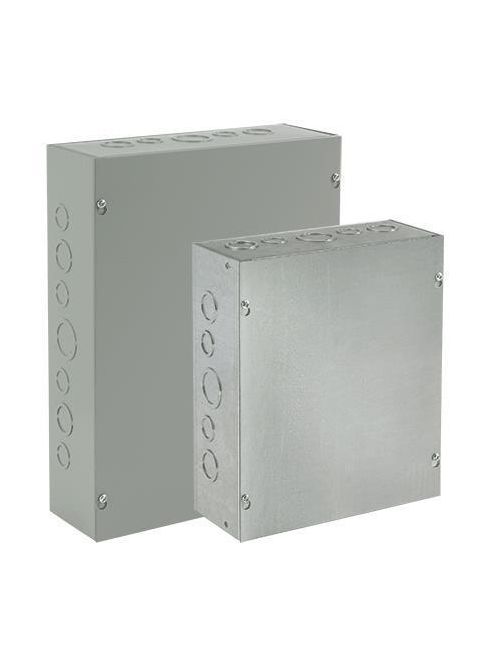

Hoffman ASG18X18X4 18 x 18 x 4 Inch Pull Box Pull Box Screw Cover

$104.57/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Unique keyhole screw slots in the cover
Available with or without knockouts. Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts.
Optional flush-mounted door frame available
Optional flush covers
Flat, removable covers fastened with plated steel screws
Provision for grounding
Mounting holes on back of box
16, 14 or 12 gauge steel or plated steel

Bulletin Number: A90P1
Material: Steel
Model Code: 47020
Ship Wt. Std. Pkg. (lbs): 16.1
Interchangeable: False
Catalog Number: ASG18X18X4
A in.: 18
B in.: 18
C in.: 4
Style: Galvanized
Number of Cover Screws: 4
Knockout Pattern along A Sides: A-B-C-D-E-F-G-H-I
Knockout Pattern along B Sides: A-B-C-D-E-F-G-H-I
Standards: UL 50, 50E Listed; Type 1; File No. E27525 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525 || NEMA/EEMAC Type 1 || IEC 60529, IP30

UPC	78351047020
GTiN	00783510470203
Width	18 in
Size	18.00x18.00x4.00 in
Type	Screw-Cover, Type 1
Material	Steel
Applications	Use this enclosure in commercial and general industrial applications that require a junction or pull box. For flush installations, order flush covers and door frames separately.
Depth	4 in
Height	18 in
Standard	IEC 60529, IP30,UL 50, 50E Listed; Type 1; File No. E27525,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,NEMA/EEMAC Type 1
Number of Screws	4
Family Brand Name	Hoffman
Sub Brand	Hoffman
