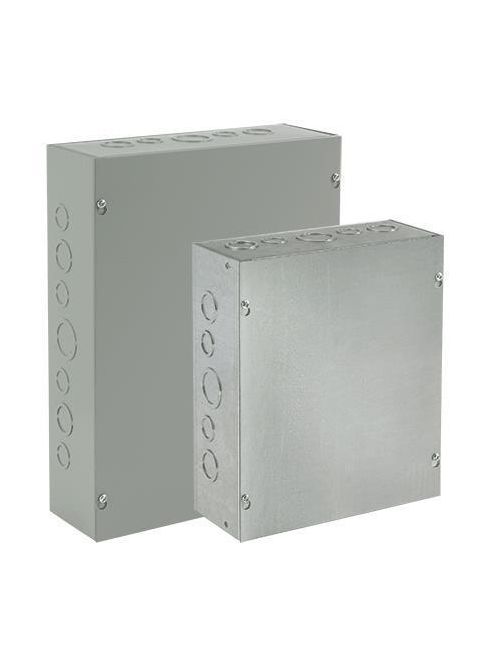

Hoffman ASG18X18X6 Galvanized Steel NEMA 1 Screw Cover Pull Box with Knockout

Features

• Unique keyhole screw slots in the cover
• Available with or without knockouts. Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts.
• Optional flush-mounted door frame available
• Optional flush covers
• Flat, removable covers fastened with plated steel screws
• Provision for grounding
• Mounting holes on back of box
• 16, 14 or 12 gauge steel or plated steel

Accessories

• Flush Covers
• Flush-Mount Door Frames
• Grounding Device
• Type 1 Locking Window Pull Box Accessory
• Touch-Up Paint

Specifications

• Bulletin Number: A90P1
• Material: Steel
• Model Code: 42270
• Ship Wt. Std. Pkg. (lbs): 20.0
• Interchangeable: False
• Catalog Number: ASG18X18X6
• A in.: 18
• B in.: 18
• C in.: 6
• Style: Galvanized
• Number of Cover Screws: 4
• Knockout Pattern along A Sides: A-B-C-D-E-F-G-H-I
• Knockout Pattern along B Sides: A-B-C-D-E-F-G-H-I
• Standards: UL 50, 50E Listed; Type 1; File No. E27525 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525 || NEMA/EEMAC Type 1 || IEC 60529, IP30
