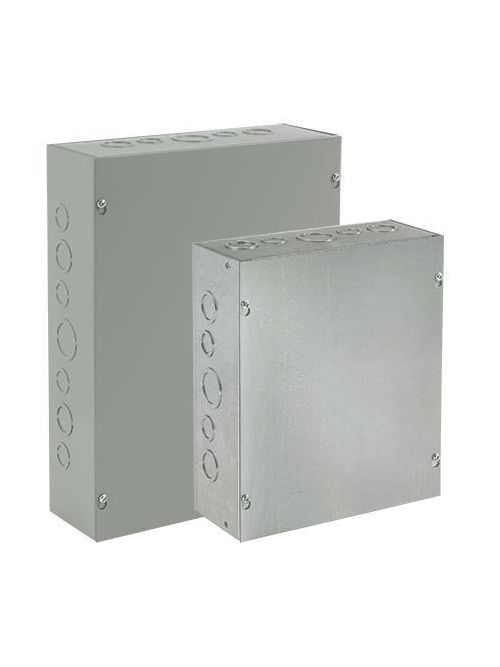

Hoffman ASG24X12X8NK Galvanized Steel NEMA 1 Screw Cover Pull Box without Knockouts
$170.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ASG24X12X8NK
North Coast Part # 603983

Features

  • Unique keyhole screw slots in the cover
  • Available with or without knockouts. Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts.
  • Optional flush-mounted door frame available
  • Optional flush covers
  • Flat, removable covers fastened with plated steel screws
  • Provision for grounding
  • Mounting holes on back of box
  • 16, 14 or 12 gauge steel or plated steel

Accessories

  • Flush Covers
  • Flush-Mount Door Frames
  • Grounding Device
  • Type 1 Locking Window Pull Box Accessory
  • Touch-Up Paint

Specifications

  • Bulletin Number: A90P1
  • Material: Steel
  • Model Code: 49669
  • Ship Wt. Std. Pkg. (lbs): 19.0
  • Interchangeable: False
  • Catalog Number: ASG24X12X8NK
  • A in.: 24
  • B in.: 12
  • C in.: 8
  • Style: Galvanized
  • Number of Cover Screws: 4
  • Standards: UL 50, 50E Listed; Type 1; File No. E27525 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525 || NEMA/EEMAC Type 1 || IEC 60529, IP30

Overview

UPC 78351049669
GTiN 00783510496692
Width 12 in
Size 24.00x12.00x8.00 in
Type Screw-Cover, Type 1
Material Steel
Applications Use this enclosure in commercial and general industrial applications that require a junction or pull box. For flush installations, order flush covers and door frames separately.
Depth 8 in
Height 24 in
Standard NEMA/EEMAC Type 1,IEC 60529, IP30,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,UL 50, 50E Listed; Type 1; File No. E27525
Number of Screws 4
Family Brand Name Hoffman
Sub Brand Hoffman
