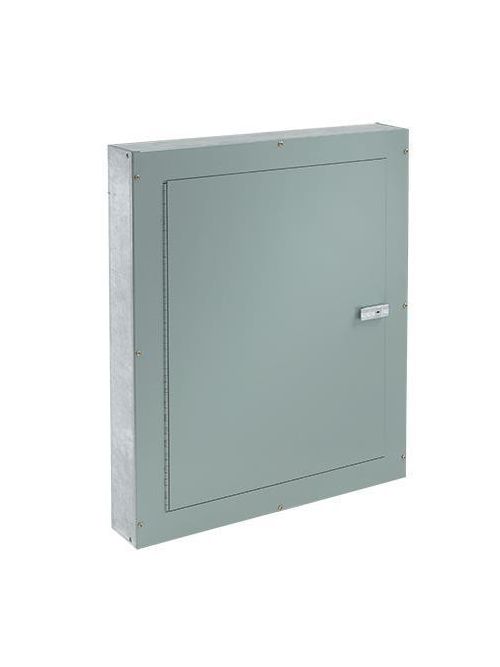

Hoffman ATC36306F Flush Mount Telephone Cabinet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ATC36306F
North Coast Part # 933344


  • Continuous hinge
  • Tumbler lock with key
  • Flush or surface mounting
  • 3/4-inch thick plywood mounting panel included
  • Telephone cabinets body is unpainted


  • Height (H) (inch): 36
  • Height (H) (millimetre): 914
  • Width (W) (inch): 30
  • Width (W) (millimetre): 762
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Panel Size (D x E) (inch): 33.00 x 27.00
  • Panel Size (D x E) (millimetre): 838 x 686
  • Mount: Flush
  • Nominal Door Size (F) (inch): 31.3
  • Nominal Door Size (F) (millimetre): 795
  • Nominal Door Size (G) (inch): 25.14
  • Nominal Door Size (G) (millimetre): 639
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Body Thickness (gauge): 12
  • Body Thickness (millimetre): 2.66
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness (gauge): 12
  • Door Thickness (millimetre): 2.66
  • Size: 36.00x30.00x6.00 in

Related Products


  • AS050


UPC 78351044619
Item Long Description Telephone Cabinet Single-Door, Type 1 is used for mounting and protecting telephone terminations, telecommunications circuit accessories, cross-connect terminal block assemblies, maintenance terminal modules, cable-splice enclosures, network interface devices, wire-guide assemblies and telephone protectors in indoor applications.
GTiN 00783510446192
Width 30 in
Size 36.00x30.00x6.00 in
Color Gray
Type Telephone Cabinets
Material Steel
Applications Power Distribution
Depth 152 mm
Height 36 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 40,File No. E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Family Brand Name Hoffman
Sub Brand Hoffman
Body Thickness 2.66 mm
