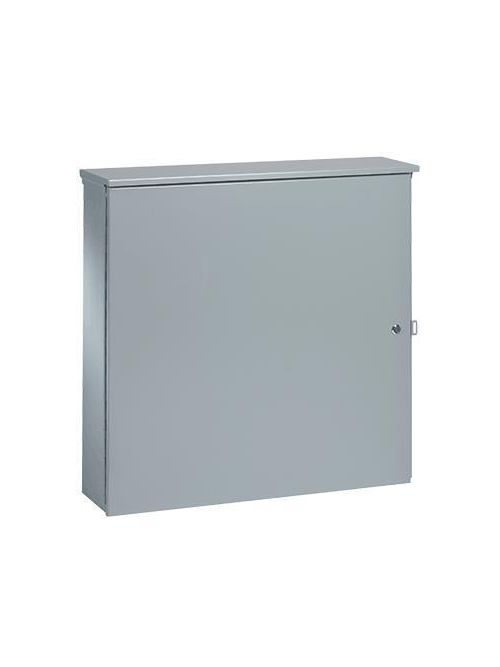

Hoffman ATC36R369 36 x 36 x 9 Inch Galvanized Steel NEMA 3R 1-Door Telephone Cabinet
$948.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ATC36R369
North Coast Part # 598634

Features

  • Lift-off hinges
  • 4-position grounding bar #14-2/0
  • Tamper-resistant quarter-turn latch
  • 7-mm square drive; use key accessory CLKSM7 or 5/16 12-point socket
  • Padlock hasp
  • Standard knockouts
  • 16 or 14 gauge galvanized steel
  • 3/4-in.-thick plywood panel

Accessories

  • Locking T Handle
  • Large Enclosure Door Stop Kit
  • Lock Inserts
  • Touch-Up Paint

Specifications

  • Bulletin Number: T90R3
  • Material: Steel
  • Model Code: 14407
  • Ship Wt. Std. Pkg. (lbs): 120.0
  • Interchangeable: False
  • Finish: Steel/Wood
  • Catalog Number: ATC36R369
  • A in.: 36
  • B in.: 36
  • C in.: 9
  • F in.: 13.50
  • Panel Size D x E in.: 33.00 x 33.00
  • Door: Single
  • Conduit Pattern: C-D-E-F-G-H-I-J-K-L-M
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27567 || UL 497 / 1863 Listed; File No. E230874 || cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27567 || NEMA Type 3R || IEC 60529 IP32

Categories

Overview

UPC 78351014407
GTiN 00783510144074
Finish Steel/Wood
Width 36 in
Size 36.00x36.00x9.00 in
Color Gray
Type T3-Box Telephone Cabinet, Type 3R
Material Steel
Applications Use T-3 Box Telephone Cabinets to mount and protect telephone terminations, telecommunications circuit accessories, cross-connect terminal block assemblies, maintenance terminal modules, cable-splice enclosures, network interface devices, wire-guide assemblies and telephone protectors in outdoor applications.
Depth 9 in
Height 36 in
Standard UL 497 / 1863 Listed; File No. E230874,IEC 60529 IP32,UL 50, 50E Listed; Type 3R; File No. E27567,CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27567,NEMA Type 3R
Family Brand Name Hoffman
Sub Brand Hoffman
