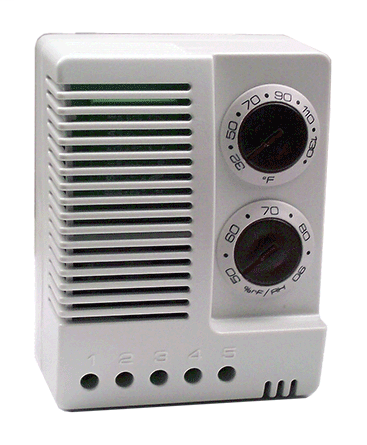

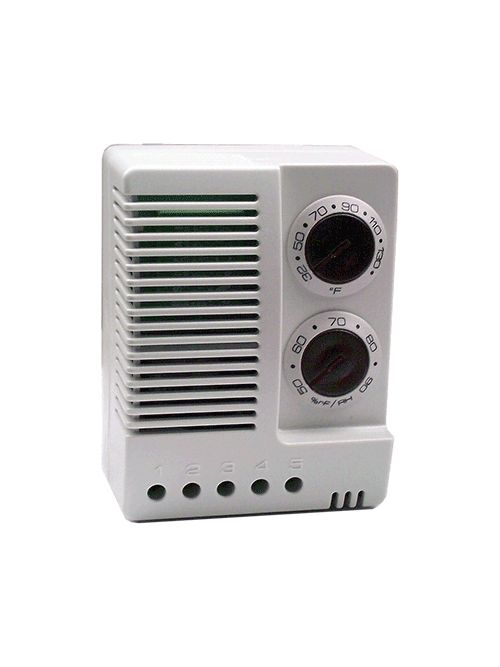

Hoffman ATEMHUM 100 to 120 VAC Light Gray Plastic Electronic Temperature and Humidity Controller
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$580.37/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ATEMHUM
North Coast Part # 339196

Features

  • Temperature (32-140 F) and humidity (50%-90% RH) adjustment
  • High switching capacity
  • Optical function displays (LED) in each control
  • Mounting clip for 35-mm DIN rail
  • Change-over contact (relay)
  • Connection is a 5-pole terminal for AWG 14 max (2.5-mm square); clamping torque .5 Nm (4.4 in-lbs) maximum
  • Plastic housing UL94V-0
  • Vertical mounting
  • Operating voltage is AC 100-240 V with maximum switching capacity of 10 A resistive / 1.6 A inductive at AC 240 V

Specifications

  • Height (H) (inch): 3.03
  • Height (H) (millimetre): 77
  • Width (W) (inch): 2.36
  • Width (W) (millimetre): 59.944
  • Depth (D) (inch): 1.69
  • Depth (D) (millimetre): 43
  • Material: Plastic
  • Voltage AC: 100 - 120 VAC
  • Width (millimetre): 60
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Size: 3.03 x 2.36 x 1.69 in
  • Voltage Rating: 100 - 120 VAC

Overview

GTiN 00783510164478
Width 2.36 in
Voltage 120 Volt
Type Cooling Accessories
Applications Controls and Drives; Power Distribution
Depth 43 mm
Height 3.03 in
Standard CE,CURus,File No. E164102
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351016447
Size 3.03 x 2.36 x 1.69 in
Finish Matte
Color Gray
Material Plastic
