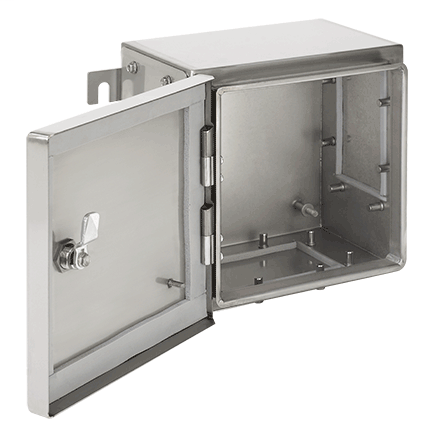

NVENT HOF ATEX503520SS63 316SS ATEX
$2,993.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ATEX503520SS63
North Coast Part # 549830

Features

  • Type 316 stainless steel quarter-turn door latching
  • 3-mm double-bit insert for security
  • Slot and through-hole side-mount hanging brackets
  • Lift-off door hinges
  • Removable gland plates; one or three gland plates standard
  • Internal/external brass earth/ground provision
  • Type 316 stainless steel external fasteners
  • Gray silicone high-temperature gasket on doors and gland plates; operating temperature range -55 C to +180 C

Specifications

  • Height (H): 500 millimetre
  • Width (W): 350 millimetre
  • Depth (D): 205 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 316L
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E): 454 x 304 millimetre
  • Conductive Panel: ATEX50P35G
  • Gland Plate Quantity: 3
  • White Panel: ATEX50P35
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #3
  • Thickness (T): 1.4 millimetre

Related Products

Accessory

  • VHL09160
  • EXWK53SS6

Overview

UPC 78351016854
GTiN 00783510168544
Width 13.78 in
Size 500x350x205mm
Type Hazardous Location Enclosures
Material STAINLESS STEEL
Applications Hazardous Environments
Depth 8.07 in
Height 19.69 in
Standard ATEX,ATEX Directive 94/9/EC,EN 60079-7:2007,EN 61241-0:2006,EN 61241-1:2004IECEx,Ex E IIC Gb,Ex Tb IIIC Db IP 66EN 60079-0:2009,Ex Tb IIIC Db IP 66IEC 60079-0:2007-2010,IEC,IEC 60079-7:2006-2007,IECEx SIR 09.0099U,Sira 09ATEX3224U
Family Brand Name Hoffman
Sub Brand ZONEX
Finish Brushed
Thickness 1.4 Millimetre mm
