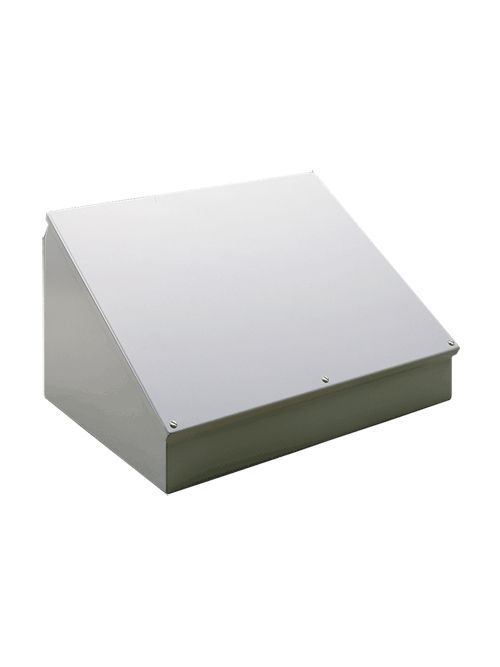

Hoffman C16C24SS 16 x 24 x 11.09 Inch Gray 14 Gauge 304 Stainless Steel NEMA 12 Junction Box Consolet Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,401.31/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # C16C24SS
North Coast Part # 824676

Features

  • Can be positioned on either of two sides to provide a 30- or 60-degree surface access
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Oil-resistant gasket and adhesive
  • Continuous hinge

Specifications

  • Height (H) (inch): 16
  • Height (H) (millimetre): 406
  • Width (W) (inch): 24
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 11.09
  • Depth (D) (millimetre): 282
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 12 Indoor, dust-resistant
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Size: 16.00x24.00x11.09 in

Related Products

Accessory

  • LED24V15
  • TE162024011
  • AS050SS

Categories

Overview

UPC 78351084830
Item Long Description Consolets are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.
GTiN 00783510848309
Width 24 in
Size 16.00x24.00x11.09 in
Type HMI Enclosure Systems
Material STAINLESS STEEL
Applications Controls and Drives
Depth 282 mm
Height 16 in
Standard 13,CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP65,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 1.98 mm
