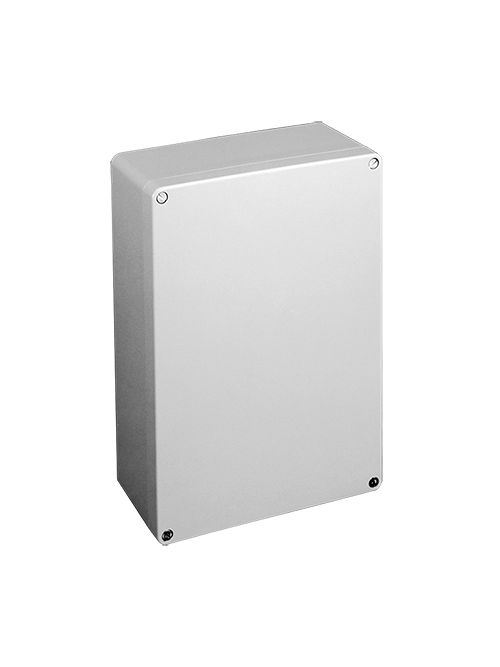

Hoffman CCA12128 122 x 122 x 80 mm Gray Cast Aluminum NEMA 4X Enclosure
$142.50/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CCA12128
North Coast Part # 669430

Features

  • Cast aluminum; no welded seams or sharp corners
  • Stainless steel captivated cover screws placed outside sealed area
  • Two to four grounding screws located on enclosure back wall
  • Oil-resistant, seamless foam-in-place gasket
  • Tongue-and-groove sealing construction
  • Threaded internal bosses provided for mounting optional panels, rails and other components
  • Mounting holes provided in corners outside of gasketed area

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately.
  • CCA886, CCA1286 and CCA1886 enclosures have only two mounting holes.

Accessories

  • DIN Type Rails
  • Hinge Kit
  • Mounting Bracket Kits
  • DIN Type Rails

Specifications

  • Bulletin Number: CA1
  • Material: Aluminum
  • Model Code: 66630
  • Ship Wt. Std. Pkg. (lbs): 2.06
  • Interchangeable: False
  • Catalog Number: CCA12128
  • A in.: 4.80
  • B in.: 4.80
  • C in.: 3.15
  • External Dimensions L x W in.: 4.80 x 4.80
  • Conductive Panel: CCAP1212
  • Panel Size D x E in.: 109 x 108
  • Mounting G x H in.: 3.23 x 4.17
  • F in.: 2.48
  • J in.: 2.36
  • K in.: 0.79
  • M in.: 2.05
  • T in.: .16
  • Standards: UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66

Overview

UPC 78351066630
GTiN 00783510666309
Finish Powder Coated
Width 122 mm
Size 122 x 122 mm
Color Gray
Type Four Lock, Single Door
Material Aluminum
Applications For use in Indoor or Outdoor Applications, these Stylized Enclosures Protect Components and Controls in Corrosive Environments
Mounting Type Wall
Depth 80 mm
Height 122 mm
Standard IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997,CSA File No. 42186: Type 4, 4X, 12, 13
Family Brand Name Hoffman
Cover Type Screw
Sub Brand COMPACT
