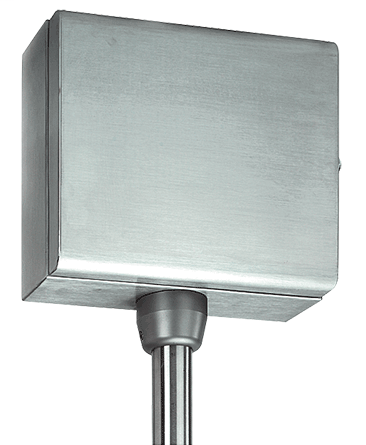

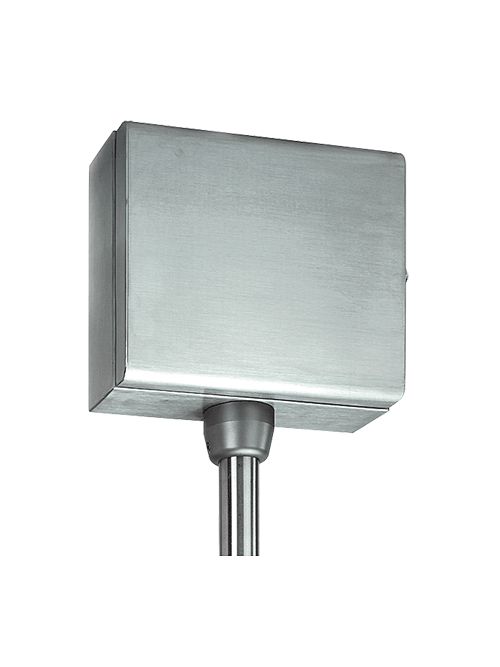

Hoffman CCC60S605530 23.62 x 21.65 x 11.81 Inch NEMA 4X Stainless Steel HMI Enclosure System
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,172.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CCC60S605530
North Coast Part # 761332

Features

  • Stainless steel safety latch mounted at side, away from protected space
  • Front door hinged on side
  • Optional mounting plate to install in the rear of the enclosure
  • Support arm system can be mounted from top or bottom
  • Polyurethane foam gaskets

Specifications

  • Height (H) (inch): 23.62
  • Height (H) (millimetre): 600
  • Width (W) (inch): 21.65
  • Width (W) (millimetre): 550
  • Depth (D) (inch): 11.81
  • Depth (D) (millimetre): 300
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Use With Pendant Arm System: Compact Series 2, Syspend 180-Max or Syspend 281-Max
  • Door Clear Space (M x N) (millimetre): 520 x 440
  • Door Clear Space (M x N) (inch): 20.47 x 17.32
  • Mounting Plate: CCCP6055
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.5
  • Sub Brand: Compact
  • Size: 600x550x300mm

Related Products

Accessory

  • LED24V15
  • AS050SS
  • TE121024011

Overview

UPC 78351046169
Item Long Description A favorite with the food and pharmaceutical industries, these stainless steel, front-door control enclosures are ideal for applications that require corrosion resistance and the suspension of process and control equipment for easy cleaning and washdown. Pre-drilled hole is included for quick mounting to various support arm systems from top or bottom position. Option to install a mounting plate to mount equipment on the rear of the enclosure. Pins are provided on the rear enclosure for easy installation.
GTiN 00783510461690
Width 21.65 in
Size 600x550x300mm
Type HMI Enclosure Systems
Material STAINLESS STEEL
Applications Controls and Drives; Corrosive Environments
Depth 300 mm
Height 23.62 in
Standard 12,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Compact
Finish Brushed
Thickness 1.5 mm
