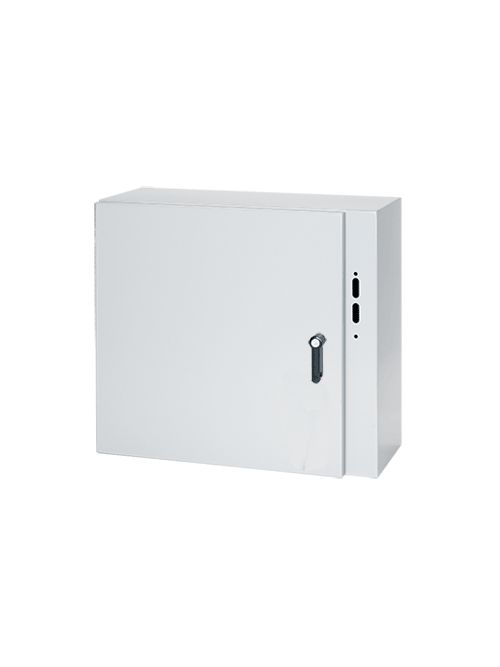

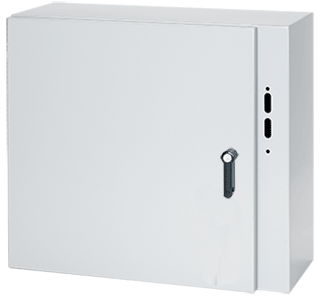

Hoffman CDSC24268SS Type 4X Disconnect Enclosure
$2,394.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CDSC24268SS
North Coast Part # 668836

Features

  • 14 gauge Type 304 or 316 stainless steel
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange
  • Integral door ramp to properly align door and gasket to body flange
  • Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Standard full-access door opening
  • Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Seamless foam-in-place gasket
  • Three-point door latching system installed on door interlocks with disconnect handle for added safety
  • Interlock bracket welded to door
  • Unique integrated door handle with tool-to-open feature and padlock option installed on door
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Includes hardware kit (consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes) and instructions for installing disconnects

Notes

  • Purchase panels separately. Optional plated Concept panels available. Optional NEMA style and stainless steel panels require conversion kit catalog number CCPM4.

Accessories

  • Blank Adapter Plates, Stainless Steel
  • Compact Cooling Fans
  • Mounting-Bracket Kits
  • PaneLiteEnclosure Lights Overview
  • Concept Panels
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: CWSD
  • Material: Stainless Steel
  • Model Code: 12755
  • Ship Wt. Std. Pkg. (lbs): 54.02
  • Interchangeable: False
  • Material: Stainless Steel, 304
  • Catalog Number: CDSC24268SS
  • A in.: 24
  • B in.: 26
  • C in.: 8
  • Panel Size D x E in.: 22.20 x 22.20
  • J in.: 12.00
  • Conductive Panel: CP2424G
  • Mounting G x H in.: 22.50 x 24.50
  • CONCEPT Panel: CP2424
  • Stainless Steel Type: 304
  • Standards: Mounting brackets required to meet UL/cUL external mounting requirement. || UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || IEC 60529, IP66 || Meets NEMA Type 3RX requirements

Overview

UPC 78351012755
GTiN 00783510127558
Finish Powder Coated
Width 660 mm
Size 24.00x26.00x8.00 in
Type Single Door, Single Lock
Material Stainless Steel
Applications Use CONCEPT Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major brand disconnect switches and circuit breakers., Furnished with Enclosures, 1. Door interlock bracket welded to door, 2. Doo
Mounting Type Wall
Depth 203 mm
Height 610 mm
Standard CUL Listed Per CSA C22.2 No. 94,IP66,UL 508A Listed,4,IEC 60529,Mounting Brackets Required To Meet UL/cUL External Mounting Requirement.,13,4X,Type 3R,Meets,File No. E61997,NEMA/EEMAC Type 3R,12
Family Brand Name Hoffman
Sub Brand Concept
