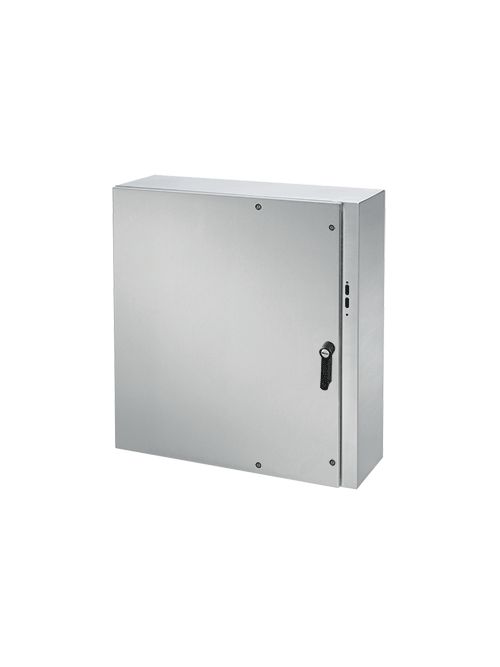

316SS DISC TYPE 4X ADDL LATCHS
Product image thumbnail 0
Product image thumbnail 1
$6,845.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CDSC603812SS6R
North Coast Part # 1829436

Features

  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange
  • Integral door alignment device to properly align door and gasket to body flange
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Standard full-access door opening
  • Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
  • Provisions on door for optional high-impact thermoplastic data pocket

Specifications

  • Height (H): 1,524 millimetre
  • Width (W): 964 millimetre
  • Depth (D): 305 millimetre
  • Material: Stainless Steel 316L
  • Stainless Steel Type: 316
  • Latch Style: 1 - 3-point
  • Concept Panel: CP6036
  • Conductive Panel: CP6036G
  • Panel Size (D x E): 1478 x 869 millimetre
  • Mounting (G x H): 1486 x 926 millimetre
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T): 1.98 millimetre

Related Products

Accessory

  • CP6036
  • CP6036G
  • CMTGFT
  • CMFKSS
  • CMC60
  • LED24V15
  • LEDA1S35
  • LEDD1S35
  • ADSTOPKSS6
  • ADSTOPK
  • ADP2
  • A2128BAPSS
  • CWHNL
  • CWHPTO
  • CWHK
  • APWK53NFSS
  • APWK720NFSS
  • APWK95NFSS
  • APWK2315NFSS
  • APWK729NFSS
  • APWK1711NFSS
  • APWK138NFNM
  • APWK138NFSS
  • APWK2919NFSS
  • APWK53NFNM
  • APWK95NFNM
  • APWK711NFSS
  • APWK116NFNM
  • APWK724NFSS
  • APWK715NFSS
  • GHPINSS
  • CAM122
  • CAM124

Overview

UPC 78351014826
GTiN 00783510148263
Material Stainless Steel
Family Brand Name Hoffman
Latches Style 1 - 3-point
Door Gauge 14
Type Disconnect, Wall-Mount
Applications Arc Flash Safety; Controls and Drives; Corrosive Environments
Finish Brushed
Thickness 1.98 Millimetre mm
