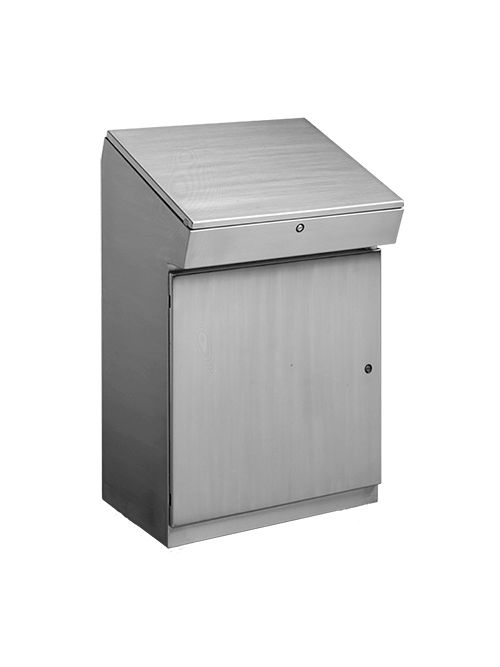

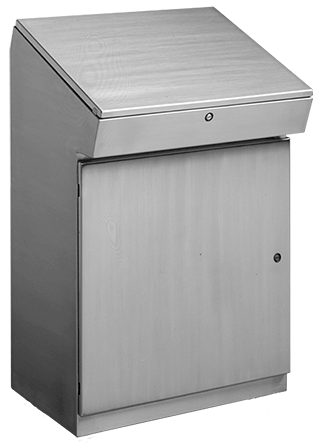

Hoffman CFC382416SS 38 x 24 x 15 Inch 14 Gauge 304 Stainless Steel NEMA 4X Console
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7,921.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CFC382416SS
North Coast Part # 666734

Features

  • Solid bottom
  • Corner-formed doors
  • External-formed 90-degree body flange
  • 20-degree sloped-top cover for 38.00-in. (965-mm) tall console or 30-degree top cover for 48.00-in. (1219-mm) console
  • Quarter-turn stainless steel latches hold top cover securely closed
  • Door props hold top cover open at 90-degrees
  • Integral water-shedding trough
  • Collar studs for optional back panel
  • Optional side panels (mounted to collar studs) expand equipment mounting space
  • Tool-to-open 3-point latch on front access door; door is removable and reversible; 170-degree full-access opening

Specifications

  • Height (H) (inch): 38
  • Height (H) (millimetre): 965
  • Width (W) (inch): 24
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 15
  • Depth (D) (millimetre): 381
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Conductive Panel: CP3624G
  • Data Pocket: Small
  • Back Panel: CP3624
  • Back Panel Height x Width (inch): 34.20 x 22.20
  • Back Panel Height x Width (millimetre): 869 x 564
  • Modification Services: Yes
  • Type Number: Type 3R
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Sub Brand: Concept
  • Size: 38.00x24.00x15.00 in

Related Products

Accessory

  • AS050SS

Overview

UPC 78351087330
Item Long Description Concept Console provides a convenient surface for mounting and monitoring components. Ergonomically designed so users can sit or stand while working on a sloped surface. Console features a large internal capacity for mounting components and controls.
GTiN 00783510873301
Width 24 in
Size 38.00x24.00x15.00 in
Type HMI Accessories
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 381 mm
Height 38 in
Standard 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,Meets NEMA Type 3RX Requirements,NEMA Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Concept
Finish Brushed
Thickness 1.98 mm
