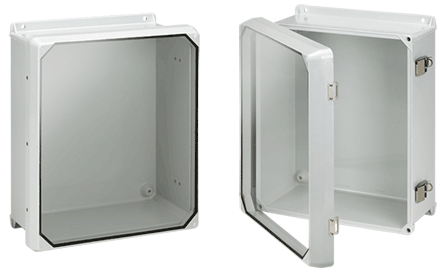

Hoffman CHJ1008HWPL1LG Type 4X Clear Flat Hinged Cover

Features

• Compression-molded fiberglass construction
• Clear polycarbonate viewing area
• Cover fastens with padlockable Type 316 stainless steel latches
• Type 304 stainless steel piano hinges
• Integral mounting brackets
• Enclosures protect equipment and operators from indirect electrical contact

Notes

• A x B x C are internal dimensions.
• Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

• H2Omit Vent Drains, Type 4X
• Hol-Sealers Non-Metallic Hole Seals
• Panels for Junction Boxes
• Swing-Out Panel Kit
• terminal Block Kit Assembly for Junction Boxes Overview

Specifications

• Bulletin Number: HJ
• Material: Fiberglass
• Model Code: 15904
• Ship Wt. Std. Pkg. (lbs): 4.8
• Interchangeable: False
• Catalog Number: CHJ1008HWPL1LG
• A in.: 9.71
• B in.: 7.21
• C in.: 4.3
• No. of latches: 1
• Q in.: 6.24
• W in.: 9.25
• Window Size N x M in.: 10.00 x 8.00
• D in.: 5.15
• F in.: 4.88
• G in.: 10.75
• H in.: 6.00
• I in.: 11.51
• J in.: 4.28
• K in.: 1.67
• L in.: 11.25
• P in.: 8.25
• Steel Panel: A10P8
• Aluminum Panel: A10P8AL
• Panel Size in.: 8.75 x 6.88
• Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||
