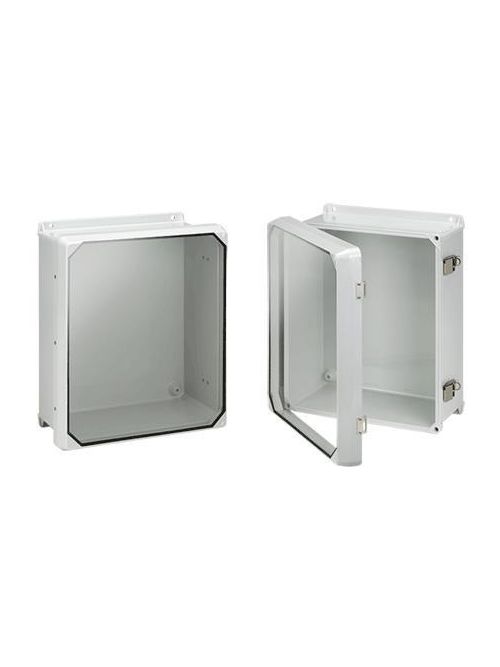

Hoffman CHJ606HWPL1LG 5.71 x 5.72 x 4.05 Inch Fiberglass NEMA 4X Overlapping Cover Enclosure
$248.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CHJ606HWPL1LG
North Coast Part # 999574

Features

  • Compression-molded fiberglass construction
  • Clear polycarbonate viewing area
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15902
  • Ship Wt. Std. Pkg. (lbs): 2.88
  • Interchangeable: False
  • Catalog Number: CHJ606HWPL1LG
  • A in.: 5.71
  • B in.: 5.72
  • C in.: 4.05
  • K in.: 1.38
  • L in.: 6.00
  • D in.: 4.90
  • F in.: 4.62
  • G in.: 6.75
  • H in.: 4.00
  • Panel Size in.: 4.88 x 4.88
  • J in.: 4.28
  • W in.: 5.97
  • Q in.: 4.25
  • P in.: 4.25
  • Aluminum Panel: A6P6AL
  • Steel Panel: A6P6
  • I in.: 7.51
  • No. of latches: 1
  • Window Size N x M in.: 6.00 x 6.00
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351015902
GTiN 00783510159023
Width 5.72 in
Size 7.31x7.31x4.96 in
Type Flat Clear Cover With Latches,Type 4X
Material Fiberglass
Applications Enclosures feature a flat, overlapping clear cover design that ensures a more-secure seal and provides a larger viewing area than a traditional window. Latches provide easy access and security.
Depth 4.05 in
Height 4.90 in
Standard NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,IEC 60529, IP66,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A
Family Brand Name Hoffman
Number of Latches 1
Sub Brand J-Series
