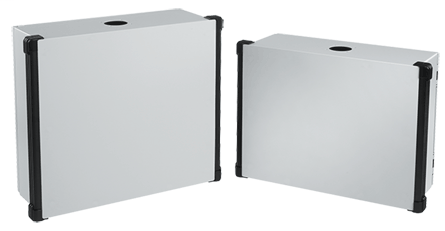

Hoffman CP304012 300 x 400 x 120 mm Painted 14 Gauge Steel NEMA 4 HMI Enclosure System with Black Extrusion
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,137.15/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CP304012
North Coast Part # 606365

Features

  • Pre-drilled hole in top for pendant arm mounting
  • Pedestal mounting when enclosure is inverted
  • Integral aluminum handle extrusions have a comfort grip that extends the length of the profile; available in black or blue
  • Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
  • Aluminum removable front plate is .125-in aluminum
  • Grounding stud on body; bonding provision on door
  • Simple easy-to-remove and install hinge pins with built-in captive clip
  • High-torque threadless studs and fasteners on door for mounting optional door panel

Specifications

  • Height (H) (inch): 11.81
  • Height (H) (millimetre): 300
  • Width (W) (inch): 15.75
  • Width (W) (millimetre): 400
  • Depth (D) (inch): 4.72
  • Depth (D) (millimetre): 120
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Front Opening (M) (millimetre): 260
  • Front Opening (M) (inch): 10.24
  • Front Opening (N) (millimetre): 330
  • Front Opening (N) (inch): 12.99
  • Front Plate (D) (millimetre): 300
  • Front Plate (D) (inch): 11.83
  • Front Plate (E) (millimetre): 411
  • Front Plate (E) (inch): 16.19
  • Weight (pound): 14.9
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: Concept
  • Size: 300x400x120mm

Related Products

Accessory

  • TE121024010
  • LED24V15
  • AS050

Categories

Overview

UPC 78351014722
Item Long Description A traditional landscape-oriented HMI enclosure with handles made of light-gray steel, the Concept HMI Enclosure is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components, an optional door panel can be mounted in the hinged rear door and the ability to accommodate cutouts anywhere on the enclosure.
GTiN 00783510147228
Finish Powder Coated
Width 400 mm
Size 300x400x120mm
Color RAL 7035 Light Gray
Type Single Door, Single Lock
Material Steel
Applications Controls and Drives
Mounting Type Wall
Depth 120 mm
Height 300 mm
Weight 14.9 lb
Standard 12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,File Number E61997,IEC 60529,IP66,NEMA Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Concept
Thickness 1.9 mm
