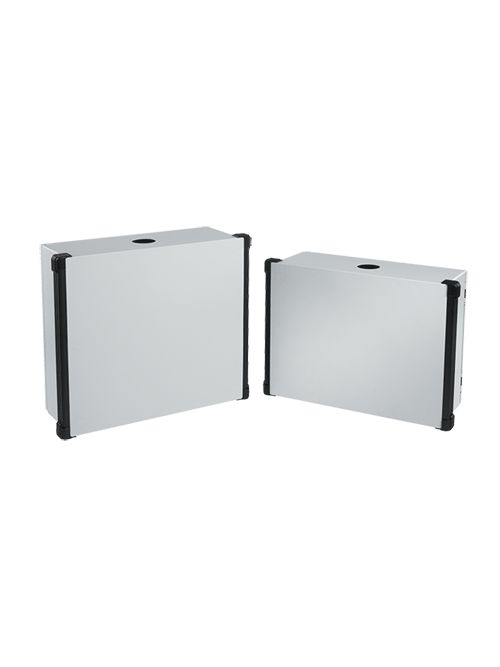

Hoffman CP354512 350 x 450 x 120 mm Painted 14 Gauge Steel NEMA 4 HMI Enclosure System with Black Extrusion
$915.71/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CP354512
North Coast Part # 543492

Features

  • Pre-drilled hole in top for pendant arm mounting
  • Pedestal mounting when enclosure is inverted
  • Integral handle extrusions have a comfort grip that extends the length of the profile; standard color black
  • Blue integral handle extrusions and end caps are also available
  • Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
  • Aluminum front plate
  • Body manufactured from 14 gauge steel
  • Front plate is .125-in. aluminum
  • Grounding stud on body; bonding provision on door
  • Simple easy-to-remove and install hinge pins with built-in captive clip
  • High-torque threadless studs and fasteners on door

Accessories

  • Industrial Corrosion Inhibitors
  • Thermoplastic Data Pocket
  • Electric Heater
  • Compact Cooling Fans
  • Touch-Up Paint

Specifications

  • Bulletin Number: C2
  • Material: Steel
  • Model Code: 14724
  • Ship Wt. Std. Pkg. (lbs): 23.18
  • Interchangeable: False
  • Finish: Steel/LtGray
  • Product Weight lbs.: 20.0
  • Catalog Number: CP354512
  • A in.: 13.78
  • B in.: 17.72
  • C in.: 4.72
  • Front Opening M in.: 12.20
  • Front Opening N in.: 14.96
  • Front Plate D in.: 13.79
  • Front Plate E in.: 18.16
  • Standards: UL 508A Listed; Type 4, 12; File Number E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA Type 4, 12 || IEC 60529, IP66

Overview

UPC 78351014724
GTiN 00783510147242
Finish Powder Coated
Width 450 mm
Size 350x450x120mm
Color RAL 7035 Light Gray
Type Single Door, Single Lock
Material Steel
Applications A traditional landscape-oriented HMI enclosure made of light-gray steel, the CONCEPT HMI is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components and the ability to accommodate cutouts anywhere on the enclosure.
Mounting Type Wall
Depth 120 mm
Height 350 mm
Weight 20.0 lb
Standard NEMA Type 4,UL 508A Listed,File No. E61997,IEC 60529,CUL Listed Per CSA C22.2 No. 94,12,Type 4,IP66,File Number E61997
Family Brand Name Hoffman
Sub Brand Concept
