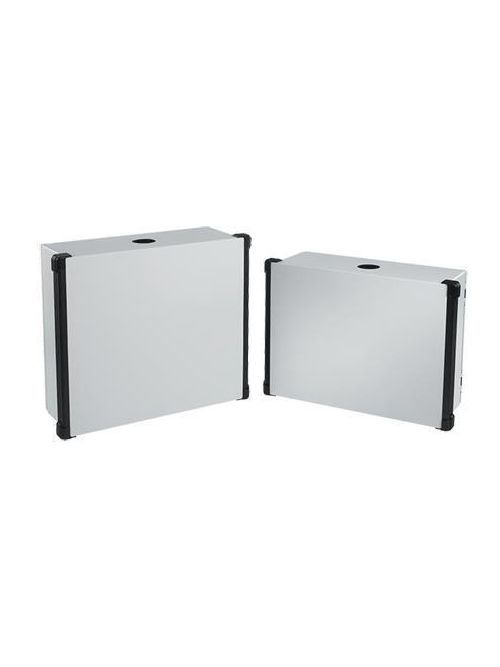

Hoffman CP556018B 555 x 600 x 180 mm Painted 14 Gauge Steel NEMA 4 HMI Enclosure System with Blue Extrusion
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,593.90/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CP556018B
North Coast Part # 1093526

Features

  • Pre-drilled hole in top for pendant arm mounting
  • Pedestal mounting when enclosure is inverted
  • Integral aluminum handle extrusions have a comfort grip that extends the length of the profile; available in black or blue
  • Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
  • Aluminum removable front plate is .125-in aluminum
  • Grounding stud on body; bonding provision on door
  • Simple easy-to-remove and install hinge pins with built-in captive clip
  • High-torque threadless studs and fasteners on door for mounting optional door panel

Specifications

  • Height (H) (inch): 21.65
  • Height (H) (millimetre): 550
  • Width (W) (inch): 23.62
  • Width (W) (millimetre): 600
  • Depth (D) (inch): 7.09
  • Depth (D) (millimetre): 180
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Front Opening (M) (millimetre): 515
  • Front Opening (M) (inch): 20.28
  • Front Opening (N) (millimetre): 530
  • Front Opening (N) (inch): 20.87
  • Front Plate (D) (millimetre): 555
  • Front Plate (D) (inch): 21.86
  • Front Plate (E) (millimetre): 611
  • Front Plate (E) (inch): 24.06
  • Weight (pound): 38.8
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Sub Brand: Concept
  • Size: 550x600x180mm

Related Products

Accessory

  • AS050
  • TE121024010
  • LED24V15

Categories

Overview

UPC 78351015213
Item Long Description A traditional landscape-oriented HMI enclosure with handles made of light-gray steel, the Concept HMI Enclosure is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components, an optional door panel can be mounted in the hinged rear door and the ability to accommodate cutouts anywhere on the enclosure.
GTiN 00783510152130
Finish Powder Coated
Width 23.62 in
Size 550x600x180mm
Color Gray
Type HMI Enclosure Systems
Material Steel
Applications Controls and Drives
Depth 180 mm
Height 21.65 in
Weight 38.8 lb
Standard 12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,File Number E61997,IEC 60529,IP66,NEMA Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Concept
Thickness 1.9 mm
