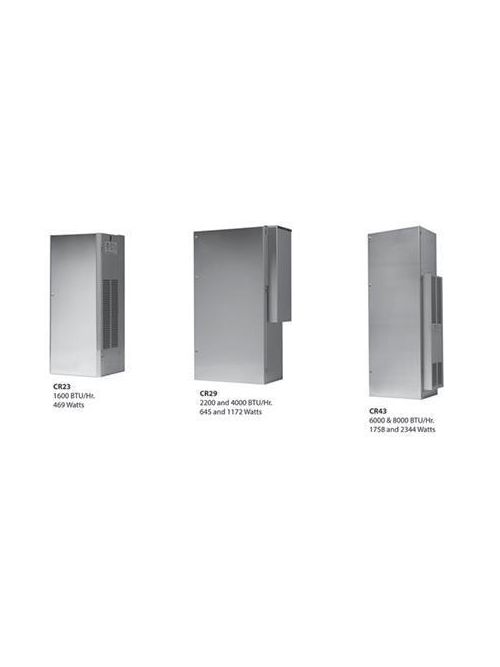

Hoffman CR430646G004 3.6 Amp 1758 W 460 Volt 1-Phase 6000 BTU/HR Galvanized Sheet Metal Cabinet Mount Air Conditioner
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7,278.01/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CR430646G004
North Coast Part # 999207

Features

  • Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
  • Smooth surface with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134a or R407c refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures

Specifications

  • Height (H) (inch): 43.31
  • Height (H) (millimetre): 1,100.074
  • Width (W) (inch): 15.75
  • Width (W) (millimetre): 400.05
  • Depth (D) (inch): 10.25
  • Depth (D) (millimetre): 260.35
  • Nominal Capacity Btu/h (British thermal unit per hour): 6,000
  • Nominal Capacity Watts (watt): 1,758
  • Nominal Voltage (volt): 460
  • Number of Phases: 1
  • Voltage AC (volt): 400-460.00
  • Operating Temperature (degree Fahrenheit): -40-131.00
  • Operating Temperature (degree Celsius): -40-55.00
  • Max Current (ampere): 3.6
  • Protection Rating: NEMA Type 12
  • Remote Access Control: No
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness (T) (gauge): 18
  • Thickness (T) (millimetre): 1.21
  • Weight (pound): 155
  • Weight (kilogram): 70
  • Mechanical Advantage: Stainless steel optional
  • NEMA Rating: 12 Indoor, dust-resistant
  • Sub Brand: ProAir

Overview

GTiN 00783510222154
Width 15.75 in
Color Gray
Voltage 460 Volt
Applications Controls and Drives; Corrosive Environments; Power Distribution
Depth 260.35 mm
Height 43.31 in
Weight 155 lb
Wattage 1758 Watt
Family Brand Name Hoffman
BTU Hour 6000 BTU
Max Current 3.6 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand ProAir
Product UPC 78351022215
Type Air Conditioners
Finish Powder Coated
Thickness 1.21 mm
Material Steel
